3208/CC/VH/LRDX/R, Eurotherm 3208 PID Temperature Controller, 96 x 48 (1/8 DIN)mm, 4 Output Analogue, Changeover Relay, Logic, Relay, 85, Регулятор температуры

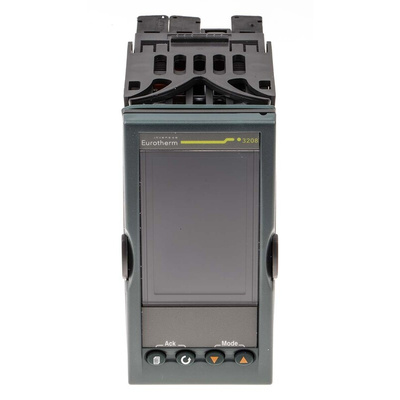

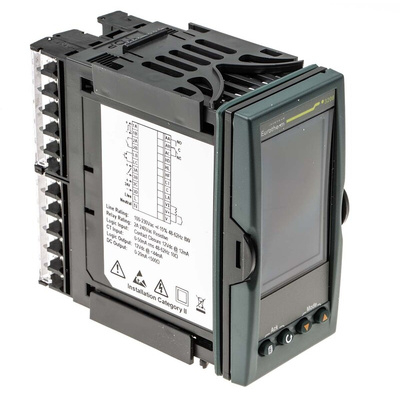

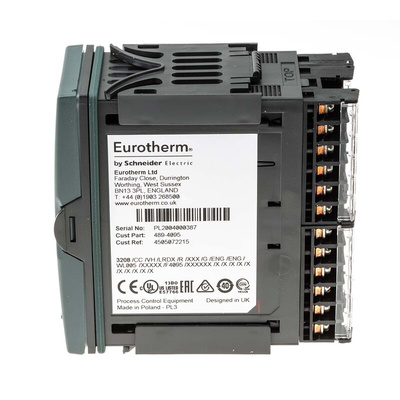

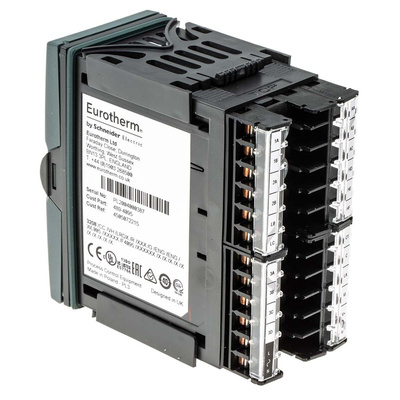

Eurotherm Temperature Controller

The Eurotherm 3208 temperature controller has a supply voltage ranging from 85VAC to 264VAC. This standard controller has a width of 48mm and a height of 92mm and depth of 101mm (1/8 DIN) device. It has up to 4 outputs where the first output is Logic I/O whereas the second and fourth outputs are dedicated to relaying and the third output is the current ranging from 0mA to 20mA. It has quick and easy commissioning. It has clear information about the process of scrolling and custom messages. The custom alarm messages facilitate easy understanding. There is a provision for recipe selection from the operator interface. It has an internal timer and setpoint programming. There is an integral ammeter for instant alerts regarding heater faults. Additionally, it has a remote setpoint solution for multi-zone applications.
Eurotherm Series 3200
Enabled with Quick Start Wizard configuration, PID, self-tuning alarms, dwell timer, delayed switch on timer and self-start timer functions. It is IP65, NEMA 4X rated. Scrolling text delivers plain language messages to advise operators and engineers what is happening to the process. Applications include plastic extruders, small ovens, chillers, sterilizers, trace heating, packaging machines.

Features and Benefits

1 OFF digital input for alarm acknowledgement
Analogue retransmission
Current monitoring
Custom alarm messages for easy understanding
Expert configuration via PC wizard with online help
Heater failure detection
Large 3-colour LCD display includes a 7 segment universal meter for simple visual indication of the process status
Modbus SP retransmission
Multi-language support (English, German, French, Italian and Spanish)
Recipe selection from operator interface
Safety messaging and 7 segment universal meter for simple visual indication of the process status
Universal inputs are B, J, K, L, N, R, S, T, C, PT100, 0mV to 80mV, 0mA to 20mA, 4mA to 20mA

Applications

Heat treatment
Hot runner
Ovens and chillers
Plastics extrusion
Stress relieving
Thermal forming

Certifications

AMS2750D
BS EN61326
CE certified
cUL approved (file E57766)
EN14597 TR
GOST-R
