645.810.55, Werma 645 Series Siren, 24 V dc, DC, IP65

Stacking Signal Tower - KombiSIGN 71, 70 mm, IP65

The WERMA KombiSIGN 71 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. The modular design of these stacking towers enables quick and easy installation. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. Simply align the corresponding white marks and gently twist to lock them in place.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP65 for use in extreme conditions
• Up to 5 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating voltage for the continuous incandescent element is dependant on bulb fitted
• LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
• Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
• Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
• Optional self adjusting siren automatically adjusts output between 80 & 100 dB depending on ambient sound levels
• AS-Interface element can be easily connected to the networking system which considerably reduces complex wiring
• Improved connection with cage clamp technology
• Operating temperature range is -20 to +50 °C
• Polyamide body with polycarbonate lenses, 70 mm diameter

Permanent Multi-colour LED Light Element

• Seven colours in one beacon
• Different colours can be triggered via the pins in the terminal element
• Positive and negative control logic
• The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
• High light intensity

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 70.

Approvals

UL listed, CSA, VDE

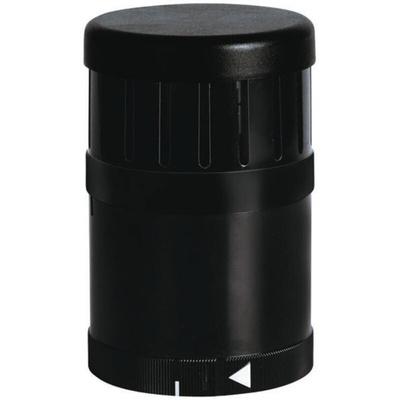

WERMA Self-Adjusting Pulse Tone Siren, 80 to 100dB, 24V DC - KombiSIGN 71 Series - 645.810.55

Alert staff to hazards in your workplace with this pulse tone siren from WERMA. It sounds an alarm at a volume between 80 and 100dB, so it's audible over loud machinery. This siren has a self-adjustment function that automatically alters its volume to 5dB above ambient noise levels, ensuring the signal can be heard in a wide variety of work environments. The robust plastic housing material keeps the siren's internal mechanism protected against accidental knocks and shocks for an enhanced service life.

Features & Benefits

• Minimum acoustic service life of 5,000 hours for long-lasting performance
• IP65 (ingress protection) rating means it's protected against dust and low-pressure water jets
• Light weight of 121g to minimise strain on your signal tower

Applications

• Haulage and logistics industry
• Mobile equipment
• Secure doorways

Why should I choose a pulse tone siren for my signalling application?

A pulse tone siren like this one cuts more effectively through the continuous ambient noise that's common in many workplaces. This gives your operators the best chance of hearing the alert and taking swift, appropriate action.
