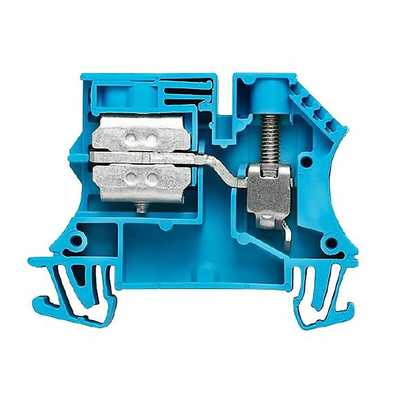

1010980000, Weidmuller WNT Series Blue DIN Rail Terminal Block, 10mm², Single-Level, Busbar Termination

Neutral

Neutral conductor disconnect Terminals for use with a neutral busbar, allowing the disconnection of individual circuits from the busbar without having to remove the terminated cable. The distribution of current is limited by the size of the busbar.

Features and Benefits

Busbar connection Support plates are available and are required to hold the busbar in place, to which the neutral terminals can then be attached

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
