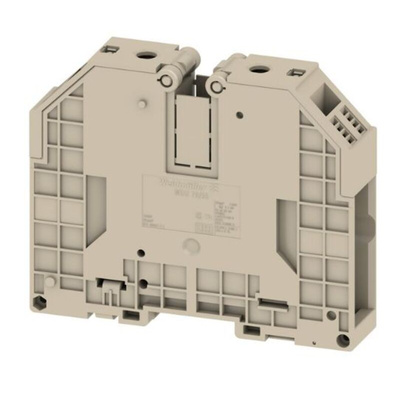

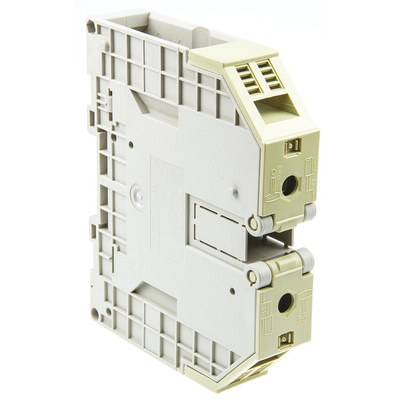

1024600000, Weidmuller WDU Series Brown Feed Through Terminal Block, 95mm², Single-Level, Screw Termination, ATEX

Weidmuller Feed-Through Terminal Block, 232A Current Rating, 6 to 00AWG Wire Size Range- WDU Series - 1024600000

If you need to safely terminate and secure your wires, pick up this feed-through terminal block from Weidmuller. A clamping yoke means your wires are kept firmly in place, even in shaky situations. Thanks to a broad operating temperature range between -50°C and +130°C, this device doesn't break a sweat in demanding environments. As it has a voltage rating of 1kV and a current rating of 232A, it's a great choice for high-power systems. It withstands use in areas with potentially explosive atmospheres, making it a safe bet for processing and milling applications.

Features & Benefits

• Burning stops in 10 seconds or less for fire safety
• Thermoplastic housing for resistance to impact and wear

Applications

• Electrical engineering
• Panel building
• Power distribution
• Data and signal controls

Is this feed-through terminal block easy to wire?

Thanks to the hinged cover, all you need to do is flip it open to access the terminals. As it accepts wires ranging in size from 6 to 00AWG, it's a versatile piece of kit.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
