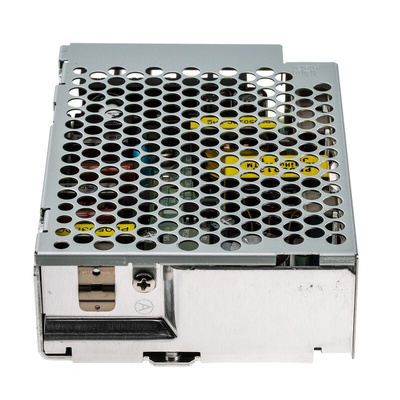

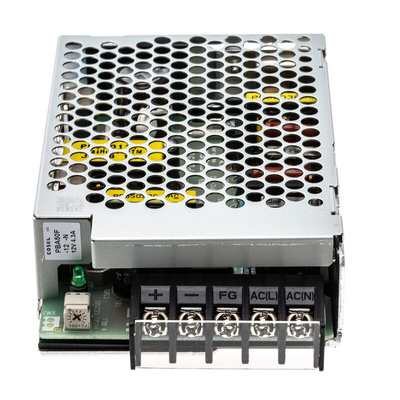

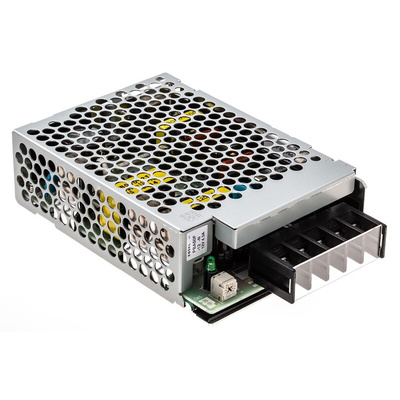

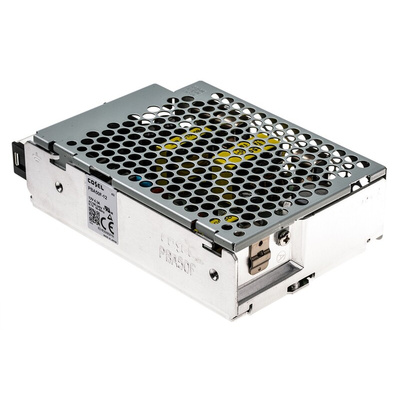

Cosel Switching Power Supply, PBA50F-12-N, 12V dc, 4.3A, 51.6W, 1 Output, 120 → 370 V dc, 85 → 264 V ac, Источник питания

Cosel Embedded Switch Mode Power Supply

The Cosel PBA series 51.6W single output AC to DC embedded switch-mode power supply has an output current of 4.3A at 12VDC. This device is 35% to 65% smaller in volume than the conventional products of the same type. It has a universal input supply voltage rating ranging from 85VAC to 264VAC/120VDC to 370VDC.
Note:
All models include a ventilated cover
Carry out the necessary testing on the end equipment with the power supply installed as per required EMC/EMI regulations

Features and Benefits

Lightweight and incredibly compact
Overcurrent and overvoltage protection
Harmonic attenuator
Convection cooled or fan cooled depending on model
Increased efficiency due to synchronous rectification technology
Enclosed package type
Chassis mount

Applications

Automated machinery
Semiconductor equipment

Certifications

UL60950-1 (at only AC input)
C-UL (CSA60950-1)
EN60950-1
EN50178 complies with DEN-AN
Complies with FCC Part15 class B (conducted noise)
VCCI-B
CISPR22-B
EN55011-B
EN55022-B (additional EMI/EMC filter required to meet class B for PBA1500F models)
Harmonic attenuator complies with IEC61000-3-2 (PBA10F, 15F and 30F models - not built into active filter)
