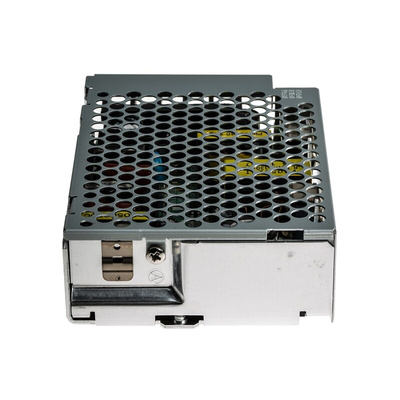

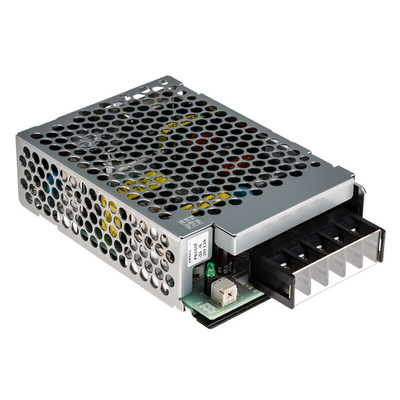

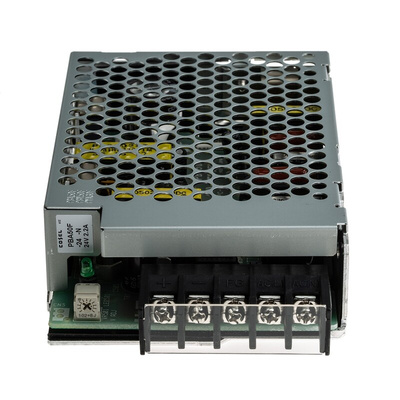

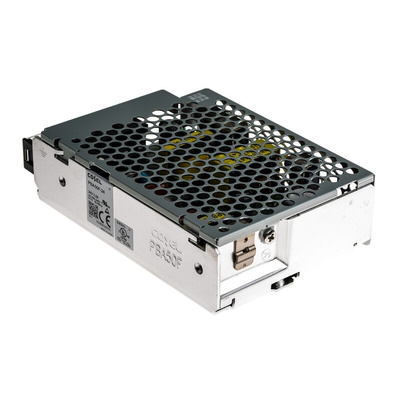

PBA50F-24-N, Cosel, 52.8W Embedded Switch Mode Power Supply SMPS, 24V dc, Enclosed, Источник питания

4898586
Номер производителя: PBA50F-24-NПроизводитель: Cosel
Цена за шт.
31170.00 руб. (С НДС) *
Количество 5+ 10+ 25+ 50+
Цена 30204.00 руб. 29301.00 руб. 28302.00 руб. 26961.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Cosel Embedded Switch Mode Power Supply

The Cosel PBA series 52.8W single output AC to DC embedded switch-mode power supply has an output current of 2.2A at 24VDC. This device is 35% to 65% smaller in volume than the conventional products of the same type. It has a universal input supply voltage rating ranging from 85VAC to 264VAC/120VDC to 370VDC
Note:
All models include ventilated cover
Carry out the necessary testing on the end equipment with the power supply installed as per required EMC/EMI regulations

Features and Benefits

Lightweight and incredibly compact
Overcurrent and overvoltage protection
Harmonic attenuator
Convection cooled or fan cooled depending on model
Increased efficiency due to synchronous rectification technology
Enclosed package type
Chassis mount

Applications

Automated machinery
Semiconductor equipment

Certifications

UL60950-1 (at only AC input)
C-UL (CSA60950-1)
EN60950-1
EN50178 complies with DEN-AN
Complies with FCC Part15 class B (conducted noise)
VCCI-B
CISPR22-B
EN55011-B
EN55022-B (additional EMI/EMC filter required to meet class B for PBA1500F models)
Harmonic attenuator complies with IEC61000-3-2 (PBA10F, 15F and 30F models - not built into active filter)

Техническая спецификация
pdfPBA10F-150F Series Datasheet
pdfPBA Series Instruction Manual
pdfPBA Series Optional Parts
Вес:
280гр
Входное напряжение:
120 → 370 V dc, 85 → 264 V ac
Выходной ток:
2.2A
Глубина:
34.5мм
Длина:
136.5мм
Количество выходов:
1
Максимальная температура:
+71°C
Минимальная температура:
-10°C
Мощность номинальная:
52.8Вт
Напряжение выходное:
24В пост. тока
Тип монтажа:
Монтаж на шасси
Тип упаковки:
Enclosed
Ширина:
82.5мм
Эффективность:
84%
