Cosel Switching Power Supply, PBA100F-24-N, 24V dc, 4.5A, 108W, 1 Output, 120 → 370 V dc, 85 → 264 V ac, Источник питания

Cosel Embedded Switch Mode Power Supply

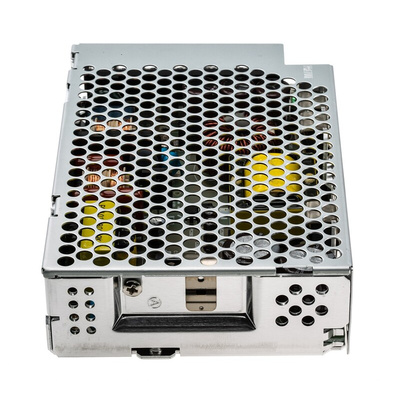

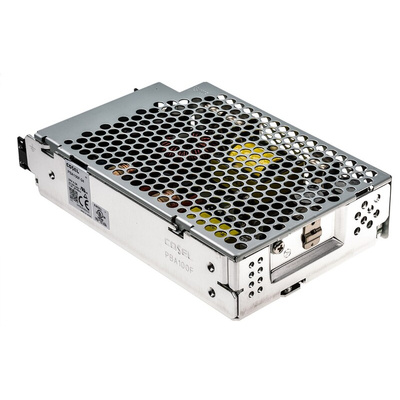

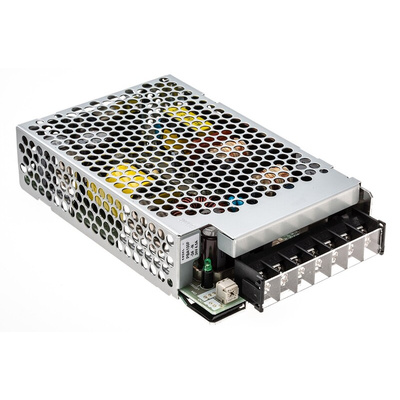

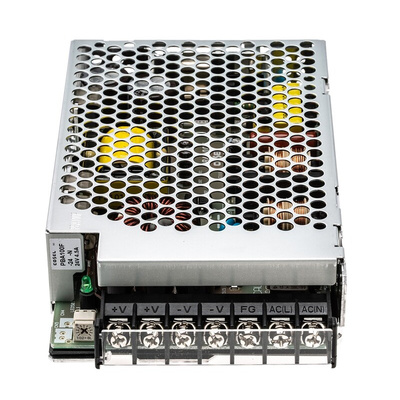

The Cosel PBA series 108W single output AC to DC embedded switch-mode power supply has an output current of 4.5A at 24VDC. It is 35% to 65% smaller in volume than conventional products of the same type. It has a universal input supply voltage rating ranging from 85VAC to 264VAC /120VDC to 370VDC.
Note:
All models include ventilated cover
Carry out the necessary testing on end equipment with the power supply installed as per required EMC/EMI regulations

Features and Benefits

Lightweight and incredibly compact
Rated output wattage of 10W to 1500W
Overcurrent and overvoltage protection
Harmonic attenuator
Convection cooled or fan cooled depending on model
PBA50F to PBA150F models have increased efficiency due to synchronous rectification technology
PBA300F to PBA1500F models have parallel operation and parallel redundancy operation
They also feature remote ON/OFF, a fan alarm and remote sensing among other functions

Applications

Automated machinery
Semiconductor equipment

Certifications

UL60950-1 (At only AC input)
C-UL(CSA60950-1)
EN60950-1
EN50178 Complies with DEN-AN
Complies with FCC Part15 class B (conducted noise)
VCCI-B
CISPR22-B
EN55011-B
EN55022-B (additional EMI/EMC filter required to meet Class B for PBA1500F models)
Harmonic attenuator complies with IEC61000-3-2 (PBA10F, 15F and 30F models - not built into active filter)
