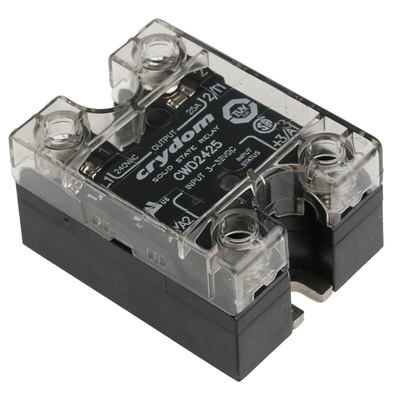

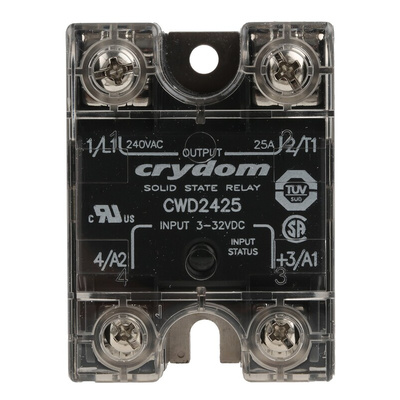

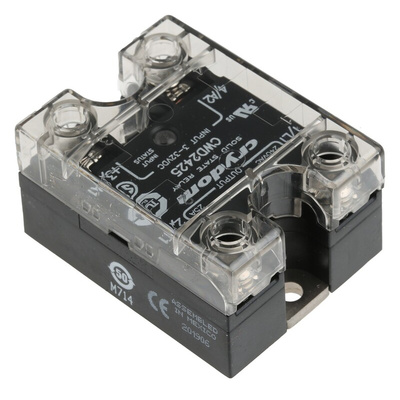

CWD2425, Sensata / Crydom CW24 Series Solid State Relay, 25 A rms Load, Panel Mount, 280 V rms Load, 32 V Control, Реле

Sensata | Crydom Solid-State Relay, Zero-Cross Switching Type, 10 to 15mA Input Current - CW24 Series - CWD2425

Ensure your electrical setup never misses a beat with this Sensata | Crydom solid-state relay. It's an electronic device that automatically turns operations on or off for streamlined performance. An operating voltage range of 24 to 280V AC means it's just the thing for use in low-power systems. Thanks to its compact dimensions of 45.7 (L) x 33 (H) x 58.4mm (D), it can easily squeeze into a densely packed panel. You'll find this item used in control rooms, robotics applications and medical instruments.

Features & Benefits

• LED status indicator for easy troubleshooting
• IP20 rating indicates it's touch-proof and protected against objects larger than 12mm in size
• Wide operating temperature range between -40°C and +80°C for use in harsh conditions

What are the benefits of SSRs?

As the device has no moving parts, there's minimal chance of wear, so it will last a long time.

How does an SSR work?

Voltage changes activate the device, which in turn opens or closes contacts to make or break a circuit.

Approvals

UL, VDE

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

UL E116949

VDE 40007242

UL E116949

CSA 81689

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)
