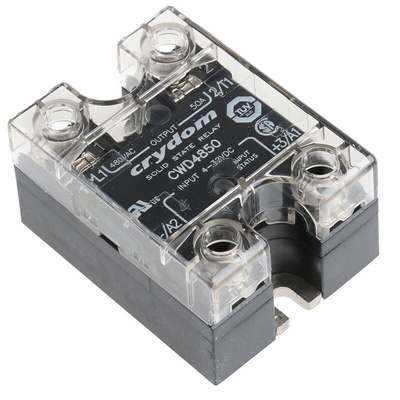

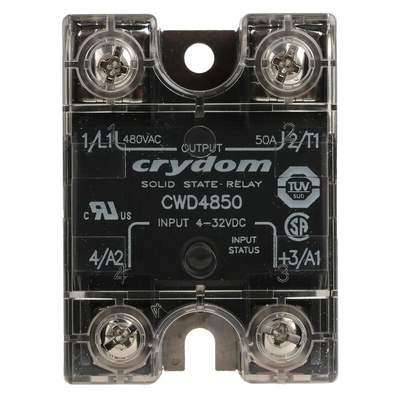

CWD4850, Sensata / Crydom CW Series Solid State Relay, 50 A rms Load, Panel Mount, 660 V ac Load, 32 V Control, Реле

Sensata | Crydom Solid-State Relay, SCR Output, 4 to 32V DC Control Voltage Range - CW48 Series - CWD4850

Keep close control over the switching of your circuits with this solid-state relay from Sensata | Crydom. Its rated load current of 50A means it's just what you need for heavy-duty applications. The connections are labelled on the front to make wiring a cinch. As it's fitted with a green LED indicator, you can check the relay's operating status at a glance. The cover has an IP20 rating, so it's finger-safe and protected against objects larger than 12mm. Use this handy SSR in HVAC systems, material handling and power control applications.

Features & Benefits

• Wide operating temperature range between -40°C and +80°C for use in harsh conditions
• MTBF of more than 11 million hours at +40°C for a long lifespan
• Flame-retardant housing for fire safety
• Direct-bond copper substrate ensures efficient heat dissipation
• Pre-drilled holes for speedy mounting on a panel

Does this SSR need a lot of power to work?

Zero-cross switching means this relay can turn on when the voltage is near 0V, helping to minimise noise and maximise efficiency.

Approvals

UL, VDE

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

UL E116949

VDE 40007242

UL E116949

CSA 81689

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Instruction Sheet - AC OUTPUT

Line Drawing - CW Series
