Gripple HF02-5M

Loop Fixing Kits

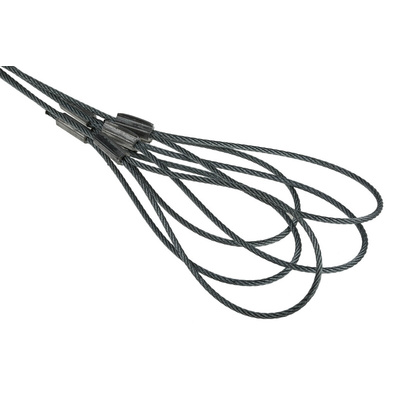

Designed for suspending fixed loads such as air conditioning components and electrical and mechanical services parts in accordance with BSRIA code of practice COP22/2002 - wire rope suspension systems. Each rope comprises a pre-formed loop for attachment, and a fastener for height adjustment.

Can be installed with wire ropes vertical or at an angle to the suspended object

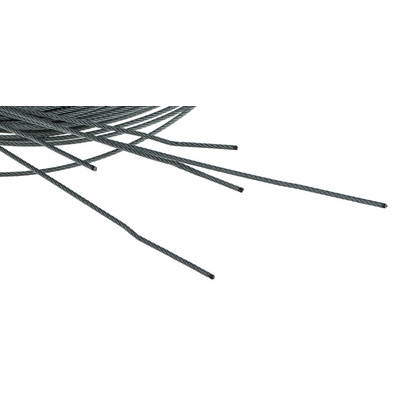

Galvanised high tensile steel wire rope

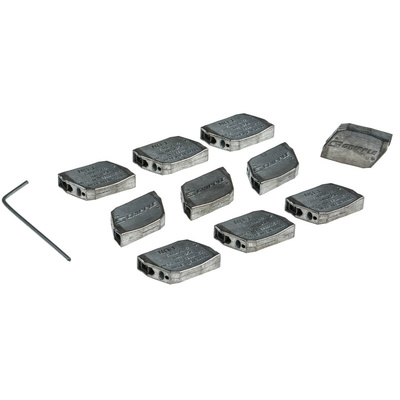

Safety key provided for unlocking and adjustment of fasteners
Safe Working Load gives a minimum 5-to-1 safety factor when ropes are used vertically, and applies to all sizes

Approvals

APAVE, TUV, UL, SMACNA, RADCO and DW144

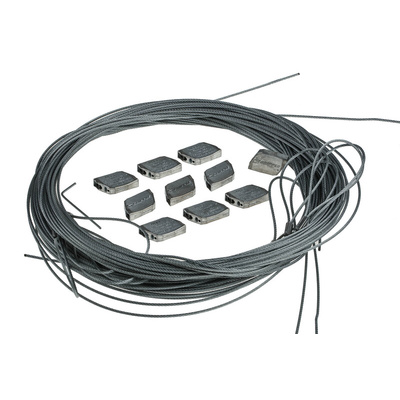

Gripple Loop Fixing Kit

The Gripple 1m loop fixing kit is designed for suspending fixed loads such as air conditioning components and electrical and mechanical service parts. The rope comprises a pre-formed loop for attachment and a fastener for height adjustment.

Features and Benefits

Can be installed with wire ropes vertically or at an angle to the suspended object
Safe working load ranging from 11kg to 45kg
Galvanised, high tensile steel wire rope
Safety key provided for unlocking and adjustment of fasteners
Safe working load gives a minimum 5-to-1 safety factor when ropes are used vertically, and applies to all sizes

Certifications

TUV certified
UL approved
APAVE approved
SMACNA approved
RADCO approved
DW144 approved

APAVE R02-450-0097

TUV 68869002
