0034602, Lapp Multicore Data Cable, 0.5 mm², 2 Cores, 20 AWG, Screened, 100m, Grey Sheath, Кабель

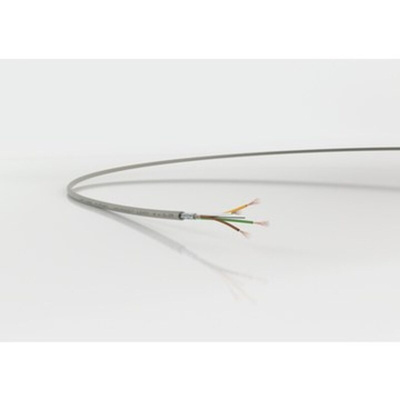

LAPP Control Cable, 2 Cores, 20AWG - UNITRONIC Series - 0034602

Transmit signals between computers and electronic devices with this control cable from LAPP. It features PVC core insulation to minimise electrical leakage and protect the integrity of the wires for increased longevity. With a cross-sectional area of just 0.5mm², this cable can fit through small gaps in machinery and equipment. When fixed, the wire has a bend radius of six times the diameter, which increases to 15 times the diameter when the cable is allowed occasional flexing. This flexibility makes the wire handy in areas with constricted access and spaces with many obstructions.

Features & Benefits

• Screened to reduce electrical interference and provide a stable signal
• DIN colour-coding increases safety by allowing easy identification of each wire's function
• Flame-retardant to prevent the spread of fire
• 100m length can be cut to the required length for your application

Applications

• Food and drink production
• Robotics systems
• Process control

What's the operating temperature range of this control cable?

This control cable has an operating temperature range between -5°C and +70°C with occasional flexing. In fixed installations, the operating temperature range increases to between -40°C and +80°C. This means the cable is suitable for use in demanding industrial environments.
