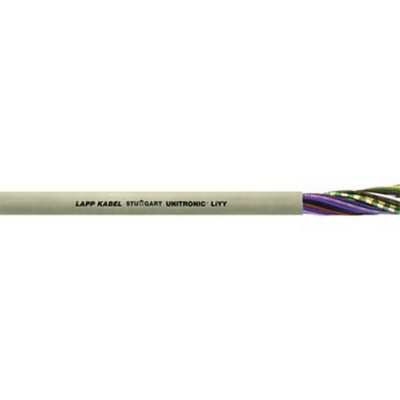

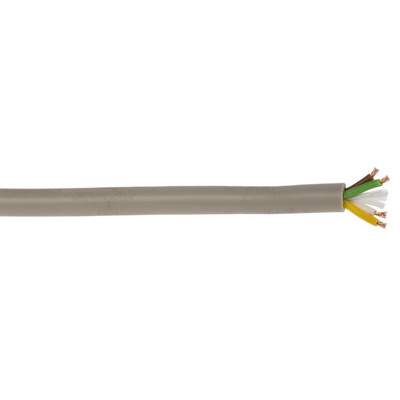

0028204, Lapp Multicore Data Cable, 0.14 mm², 4 Cores, 26 AWG, Unscreened, 100m, Grey Sheath, Кабель

LAPP Data Cable, 350V Voltage Rating, 138Ω/km Conductor Resistance - UNITRONIC LiYY Series - 0028204

Need a compact but robust solution for linking your network? Choose this data cable from LAPP. Its tough PVC sheath withstands oils and moisture to deliver long-lasting performance you can bank on. The twisted copper cores reduce crosstalk and are corrosion-resistant, for signal transmission that's clear as a bell. With a 3A current rating, this cable is well suited for use in many kinds of domestic, commercial and industrial applications, so it's a versatile piece of kit.

Features & Benefits

• Wide operating temperature range between -40°C and +80°C for use in demanding conditions
• Bending radius of 14.4mm in fixed installation, so it's a flexible choice
• Slender 26AWG size, meaning it fits in tight spaces

Applications

• Computer networks
• Measuring equipment
• Control systems

How long is this data cable?

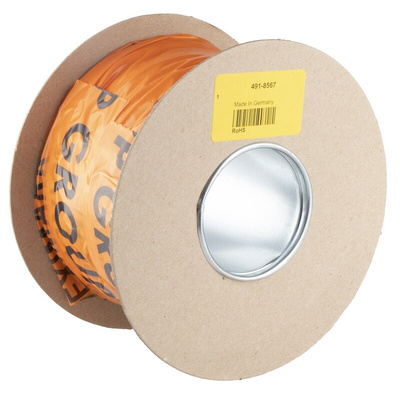

This data cable is supplied in a length of 100m, so you'll have enough for a long run or multiple cut-and-fix jobs.

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.

Datasheet

Cable Selection Guide

Datasheet - 0028204
