0034603, Lapp Multicore Data Cable, 0.5 mm², 3 Cores, 20 AWG, Screened, 100m, Grey Sheath, Кабель

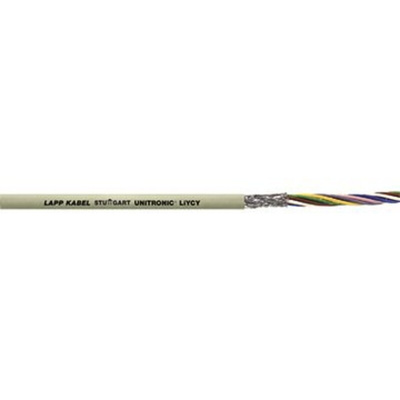

Unitronic® LiYCY cable

From Lapp, the Unitronic LiYCY series of data cables are DIN colour coded, and ideal for low frequency applications. These data or signal cables are used for computers and electronic control devices, and are screened to minimize electrical interference. The cable also features small dimensions and outer diameter, which makes it suitable for fixed installations where space saving is a concern.

The Unitronic LiYCY cable is flame retardant and suitable for use in dry or damp rooms.

Features and Benefits

• Core insulation with PVC base
• Cores stranded in layers
• DIN colour code
• Shield braid made from tinned wires
• Transparent outer sheath made from special PVC-based mixture
• Flame-retardant in accordance with VDE 0472, part 804, test type B (IEC 332.1)
• Operating temperature with occasional flexing: -5°C to +70°C
• Operating temperature with fixed installation: -40°C to +80°C

Applications

This CY multi-conductor cable is suitable for a variety of applications, such as;

• RS 232
• Process control
• Communications, signal & control
• Signal & broadcast

Accessories

Unitronic LiYCY cables should be used with accessories that mach its capabilities, and as such Lapp supplies a series of low-resistance screen cable glands.

• 839-5331 is an M16 Skintop EMC Cable Gland
• 839-5340 is an M20 Skintop EMC Cable Gland
• 839-5343 is an M25 Skintop EMC Cable Gland
• 839-5347 is an M32 Skintop EMC Cable Gland
• 839-5356 is an M40 Skintop EMC Cable Gland
• 839-5359 is an M50 Skintop EMC Cable Gland

Standards

VDE 482, VDE 0472, IEC 332.1 and DIN 47100 colour code

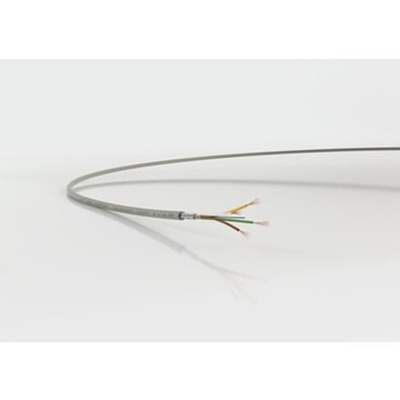

LAPP Control Cable, 5.9mm OD, 9A Current Rating - UNITRONIC LiYCY Series - 0034603

This multicore control cable from LAPP is a reliable choice for data transfer in a heavy industrial setting. Thanks to its robust PVC sheathing, it's protected against abrasion, cuts and corrosion, so you can be sure of its long service life. This flame-retardant insulator also supports workplace safety in the event of a fire. A tinned copper braid screen shields the cores from electromagnetic interference, allowing the cable to deliver clean transmissions.

• Wide operating temperature range between -40°C and +80°C for use in challenging environments
• Non-wicking filler repels liquid to avoid equipment failure in damp or humid environments

Applications

• Computer systems
• Instrumentation technology
• Process control

What's the gauge of this cable?

The component has a slim cross-sectional area of 0.5mm² or 20AWG, so it's suitable for use in fixed installations where space is tight.
