0034525, Lapp Multicore Data Cable, 0.34 mm², 25 Cores, 22 AWG, Screened, 50m, Grey Sheath, Кабель

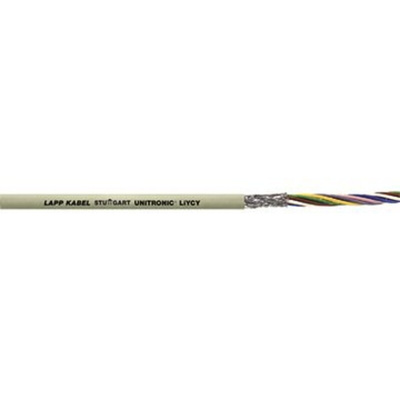

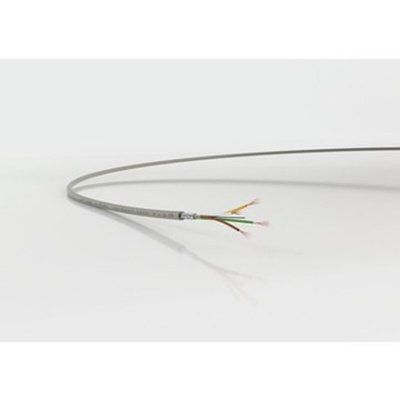

Unitronic® LiYCY cable

From Lapp, the Unitronic LiYCY series of data cables are DIN colour coded, and ideal for low frequency applications. These data or signal cables are used for computers and electronic control devices, and are screened to minimize electrical interference. The cable also features small dimensions and outer diameter, which makes it suitable for fixed installations where space saving is a concern.

The Unitronic LiYCY cable is flame retardant and suitable for use in dry or damp rooms.

Features and Benefits

• Core insulation with PVC base
• Cores stranded in layers
• DIN colour code
• Shield braid made from tinned wires
• Transparent outer sheath made from special PVC-based mixture
• Flame-retardant in accordance with VDE 0472, part 804, test type B (IEC 332.1)
• Operating temperature with occasional flexing: -5°C to +70°C
• Operating temperature with fixed installation: -40°C to +80°C

Applications

This CY multi-conductor cable is suitable for a variety of applications, such as;

• RS 232
• Process control
• Communications, signal & control
• Signal & broadcast

Accessories

Unitronic LiYCY cables should be used with accessories that mach its capabilities, and as such Lapp supplies a series of low-resistance screen cable glands.

• 839-5331 is an M16 Skintop EMC Cable Gland
• 839-5340 is an M20 Skintop EMC Cable Gland
• 839-5343 is an M25 Skintop EMC Cable Gland
• 839-5347 is an M32 Skintop EMC Cable Gland
• 839-5356 is an M40 Skintop EMC Cable Gland
• 839-5359 is an M50 Skintop EMC Cable Gland

Standards

VDE 482, VDE 0472, IEC 332.1 and DIN 47100 colour code

LAPP Data Cable, 25 Cores, 11.9mm Outer Diameter - UNITRONIC Series - 0034525

When you need a thin wire to connect your computer system or office equipment, look to this data cable from LAPP. Thanks to its compact outer diameter of just 11.9mm, it's a breeze to fit into a slim enclosure or wall cavity. The cord features PVC insulation that stands up to wear and chemicals for use in heavy-duty environments. Its bare copper wires are highly conductive to ensure reliable data transmission.

Features & Benefits

• Tinned copper braided shield protects against EMI
• PVC outer sheath protects inner wires against impact and wear
• Performs reliably in harsh environments, thanks to a wide operating temperature range of -40°C to +80°C in a fixed installation

Applications

• Medical equipment
• Data collection instruments
• Office networks

Is this cable flame-retardant?

Yes, it's made of flame-retardant materials to ensure safety in the event of a fire.
