0028407, Lapp Multicore Data Cable, 0.34 mm², 7 Cores, 22 AWG, Unscreened, 100m, Grey Sheath, Кабель

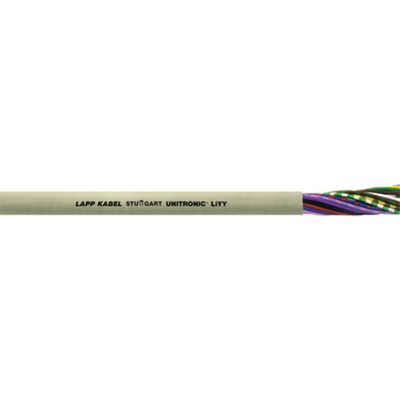

Unitronic® LiYY data cable

From Lapp, Unitronic series LiYY data cables have been developed from tried and tested VDE 0812 cables. LiYY designated cables are designed for multi-functional use, and are commonly used in signal and data transmission applications.

The multi-core cable is comprised of fine-wire bare copper strands, with a PVC core insulation and sheath.

This Unitronic low-frequency data cable has a small outer diameter for space-saving installations, and is also flame retardant. It can be used in dry or damp indoor environments, and is suitable for occasional flexing.

Features and Benefits

• Space-saving installation
• DIN colour code
• Transparent outer sheath made from special PVC-based mixture
• Flame-retardant in accordance with VDE 0472, part 804, test type B (IEC 332.1)
• Operating temperature with occasional flexing: -5°C to +70°C
• Operating temperature in fixed installation: -40°C to +80°C

Applications

The Lapp Unitronic LiYY cable is suitable for many control and signal applications, and is commonly found in industrial computers. It can also be used in;

• Process and control equipment
• Office machines
• Measuring equipment

Accessories

Unitronic LiYY cable should be use din conjunction with accessories that match its capabilities, such as Lapp cable glands, such as the easy-to-install Skintop range.

• 361-9994 is an M12 IP68 Skintop ST-M Cable Gland
• 365-8422 is an M16 IP68 Skintop ST-M Cable Gland
• 365-8438 is an M20 IP68 Skintop ST-M Cable Gland
• 365-8444 is an M25 IP68 Skintop ST-M Cable Gland
• 362-0001 is an M32 IP68 Skintop ST-M Cable Gland
• 362-0017 is an M40 IP68 Skintop ST-M Cable Gland
• 362-0023 is an M50 IP68 Skintop ST-M Cable Gland

Standards

VDE 0482, VDE 0472, IEC 332.1 and DIN 4700 colour code

LAPP Data Cable, 7 Cores, 5.9mm Outer Diameter - UNITRONIC LiYY Series - 0028407

If you're looking for rapid-fire data transmission in your network, turn to this data cable from LAPP. Its bare copper wires are highly conductive to ensure speedy data transfers. The cable has a compact outer diameter of only 5.9mm, so it fits into narrow spaces without a hitch. It has a minimum bending radius of four times its outer diameter in a fixed installation, making it easy as can be to fit it around corners.

Features & Benefits

• Supplied on a 100m reel, so you have plenty in stock for multiple jobs
• Wide operating temperature range of -40°C to +80°C in a fixed installation for reliable performance in challenging settings

Applications

• Computer systems
• Office equipment
• Telecommunications setups

Is this cable insulated?

Yes, this cable features a robust PVC insulation that stands up to wear and chemicals, helping to prevent electrical hazards in harsh environments.

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
