0028520, Lapp Multicore Data Cable, 0.5 mm², 20 Cores, 20 AWG, Unscreened, 100m, Grey Sheath, Кабель

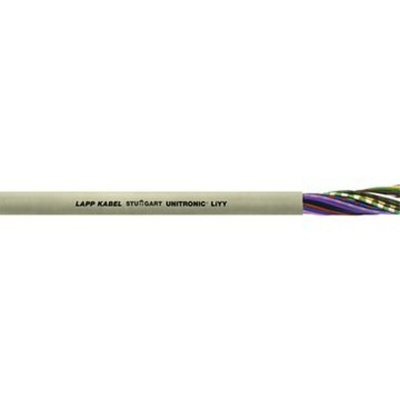

LAPP Control Cable, 11.4mm OD, 500V Voltage Rating - UNITRONIC Series - 0028520

Need a wire to connect your low-frequency system? Choose this UNITRONIC LiYY multi-core control cable from LAPP. It has 20 highly conductive copper cores to support a fast and reliable connection. Its PVC insulating sheath is flame-retardant to prevent the spread of electrical fires. This sheath is also resistant to oils and other liquids so you can use the cable in damp conditions to make connections to your control and signal devices.

Features & Benefits

• Outer diameter of 11.4mm for space-saving installation
• 100m length can be cut down to suit your system's needs
• Wide operating temperatures between -40°C and +80°C for use in demanding environments

Applications

• Signalling systems
• Industrial automation
• Office facilities
• Computer networks

What's the benefit of unshielded or unscreened cables?

Unshielded or unscreened wires are thinner and more flexible, meaning you can install them compactly in complex wire arrangements.

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
