0028508, Lapp Multicore Data Cable, 0.5 mm², 8 Cores, 20 AWG, Unscreened, 100m, Grey Sheath, Кабель

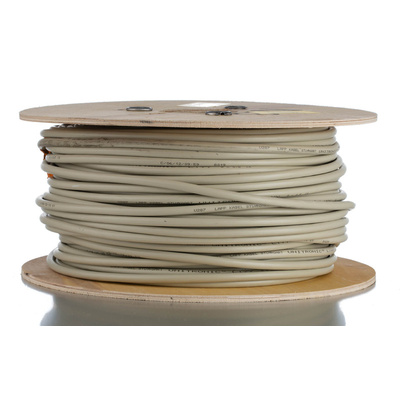

LAPP Unscreened Multicore Data Cable, 20AWG, 100m Length - UNITRONIC LiYY Series - 28508

Use this data cable from LAPP for effective communication between your control devices. It's an unshielded YY cable type, which means both its insulation and outer sheath are made of PVC (polyvinyl chloride). This provides durability and impact resistance so you can be sure the cable will perform reliably even in harsh industrial conditions. It's also a safe choice as its flame-resistant properties will help prevent the spread of flames if a fire occurs.

Features & Benefits

• Wide operating temperature range of -40°C to +80°C ensures safe use in tough conditions
• Cable length of 100m means you get sufficient supply for several jobs
• Voltage rating of 500V (volts), so suitable for low-voltage applications
• Compact outer diameter of 8mm for space efficiency in busy enclosures

Applications

• Process and control equipment
• Office machines
• Measuring equipment

How do I maintain this data cable?

You can maintain this cable by carrying out checks periodically for cuts or burns along its length. If you find burns, check the supply current doesn't exceed the cable's rated current.

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
