281406 CI-PKZ01-PVT, Eaton Insulated Enclosure for Use with PKZM01 Series, 158mm Length

Eaton Insulated Enclosure, 160 (H) x 97 (Width) x 80mm (D) - PKZM01 Series - 281406 CI-PKZ01-PVT

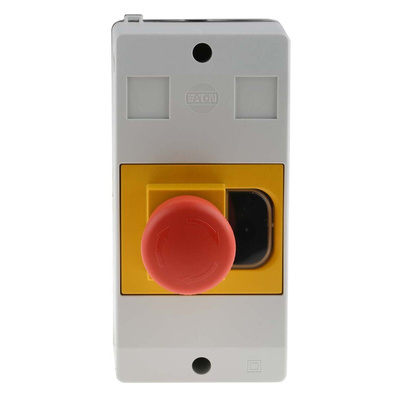

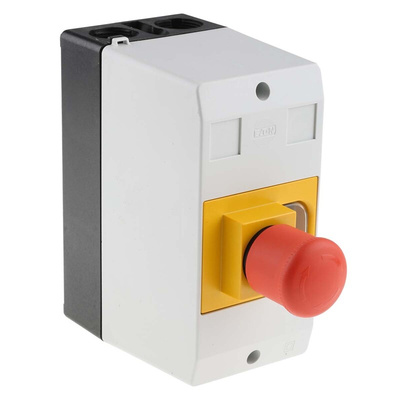

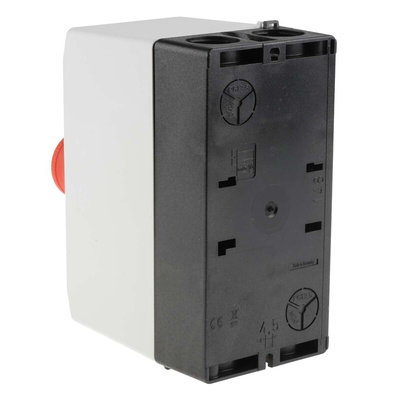

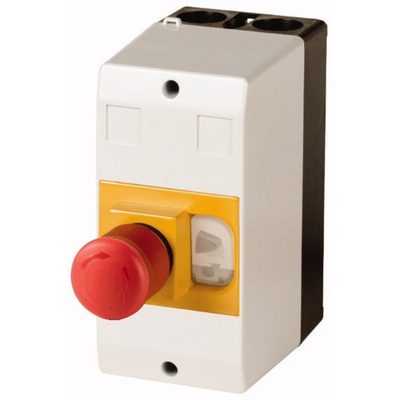

Shield your motor protection circuit breaker from contaminants using this insulated enclosure from Eaton. Thanks to its surface mounting design, the unit also lets you directly attach your MPCB to a wall or equipment. Its plastic housing delivers insulation protection to help prevent electrical hazards. The integrated push button on its front means you can quickly shut off power to your machine in the event of an emergency. For ease of assembly, this enclosure is designed for MPCBs from the PKZM01 series. You'll find it used in applications like fans, compressors and mills.

Features & Benefits

• Compact dimensions of 160 (H) x 97 (W) x 80mm (D) to save space in your setup
• Ambient operating temperature range of -25°C to +70°C to withstand demanding conditions
• IP65 rating indicates it's protected against dust and low-pressure jets of water
• Push button is a bright red colour for quick identification

How does an MPCB work?

An MPCB is designed to automatically shut off the power supply to your electric motor if it detects faults like a current overload or short circuit. MPCBs from the PKZM01 series typically come with built-in push buttons that let you reset them quickly.

Note

Eaton formerly known as Moeller
