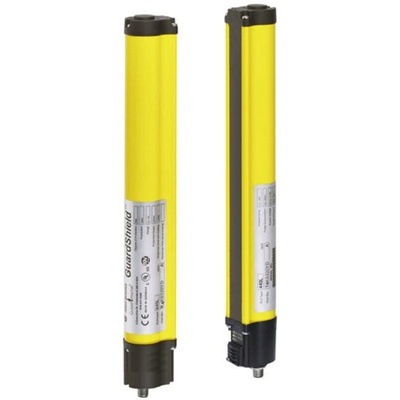

440L-P4J0320YD, Allen Bradley Guardmaster 440 L Series GuardShield Light Curtain, Sender & Receiver, 32 Beam(s), 14mm Resolution, Световые завесы

Allen Bradley Guardmaster GuardShield 440L Type 4 Finger Protection Safety Light Curtains

Ensure sophisticated presence sensing for your machine safety application with the GuardShield 440L Finger Protection Safety Light Curtains and accessories by Allen Bradley Guardmaster.

The GuardShield family of safety light curtains are general-purpose devices for presence sensing. They can be used on hazardous machinery to ensure perimeter and access detection and point of operation detection, helping to prevent injury to personnel. Point of Operation Control light curtains (POC) are used specifically for finger, hand and arm recognition and should be placed close to the hazard where personnel interact with the machine. This type of safety system uses a transmitter which emits sequential pulses of infrared light to a receiver. When the beams are interrupted a stop signal is immediately sent to the machine.

These GuardShield Light Curtains are self-contained two-box Type 4 Electro Sensitive Protective equipment (ESPE). They have convenient DIP switch selectable Modes of Operation, located beneath a security door in the end caps, which offer advanced features such as:

• Fixed blanking (teachable)
• Floating blanking (one or two beam)
• Beam coding
• Start/restart interlock
• External device monitoring (EDM)

Features and Benefits:

• 14mm resolution (finger detection)
• Two safety solid state and one auxillary non-safety outputs
• Easy maintenance with the Quick Disconnect cables (4-pin for the sender, 8-pin for the receiver)

Applications:

• Robot cells
• Conveyors
• Presses
• Forming Operations
• Electronic Fences
• Workstations

Note: Installation and operation of this safety device must be in strict accordance with accompanying operating instructions.

When ordering both a sender and receiver are included. In addition, a sender cable and a receiver cable will be required. For suitable safety relays, see the "Minotaur" range of products (e.g 447-5587)

Standards: IEC/EN61496 parts 1 & 2, Type 4 ESPE and EN954-1 Cat 4, UL61496, UL1998

Approvals: TUV and CE marked; UL61496, UL1998

Light Curtain

UL;LISTED SA10989

UL LISTED FOR CANADA SA10989

EMD TUV 08/205/B1-YMA134740
