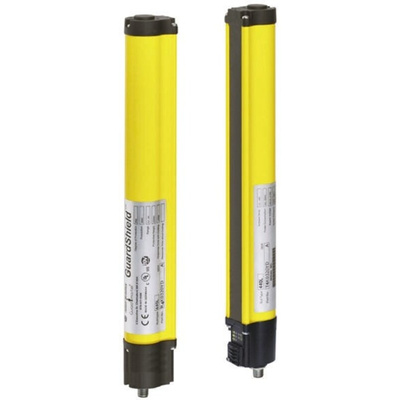

440L-P4K0800YD, Allen Bradley Guardmaster 440 L Series GuardShield Light Curtain, Sender & Receiver, 40 Beam(s), 30mm Resolution, Световые завесы

440L, Type 4, Hand Protection

DIP switch selectable modes of operation located beneath a security door in the end caps offer features that include:
Fixed blanking (teachable)
Floating blanking (one or two beam)
Beam coding
start/restart interlock
External device monitoring (EDM)
Two safety solid state and one auxillary non-safety outputs
Easy maintenance with the Quick Disconnect cables (4 pin for the sender, 8 pin for the receiver)

Installation and operation of this safety device must be in strict accordance with accompanying operating instructions

Note

When ordering both a sender and receiver are included. In addition, a sender cable and a receiver cable will be required. For suitable safety relays, see the "Minotaur" range of products (e.g 447-5587)

Standards

IEC/EN61496 parts 1 & 2, Type 4 ESPE and EN954-1 Cat 4

Approvals

UL; TUV

Light Curtain

UL;LISTED SA10989

UL LISTED FOR CANADA SA10989

EMD TUV 08/205/B1-YMA134740
