889D-F8AB-10, Allen Bradley Guardmaster Sensor Actuator Cable

Allen Bradley Guardmaster 889D-F8AB-10 Cable for GuardShield Safety Light Curtains

Complete your GuardShield Safety Light Curtains system with the 889D-F8AB-10 cordset by Allen Bradley Guardmaster and ensure optimal protection for personnel around hazardous areas.

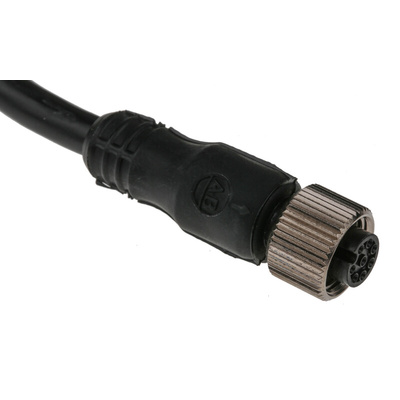

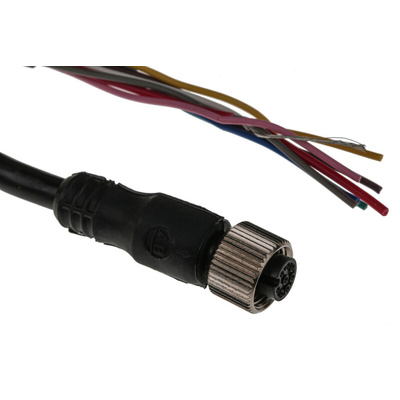

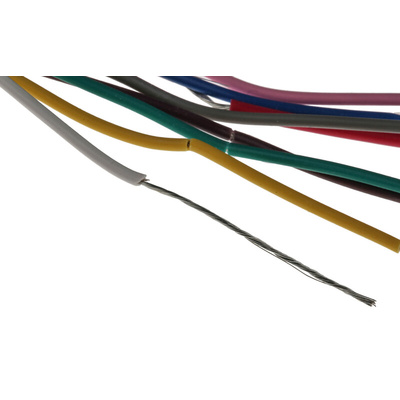

The 889D-F8AB-10 cordset is a straight female 8-Pin DC micro unshielded PUR cable. It has a length of 10m (32.8ft). The jacket material is made of resilient black PUR. The wire rating for this connector is 24AWG 36V DC/ 30V AC 1.5A. The contacts are made of nickel-plated brass. This cable is designed for use with the 440L GuardShield Safety Light Curtains.

The GuardShield family of safety light curtains are general-purpose devices for presence sensing. They can be used on hazardous machinery to ensure perimeter and access detection and point of operation detection, helping to prevent injury to personnel. Point of Operation Control light curtains (POC) are used specifically for finger, hand and arm recognition and should be placed close to the hazard where personnel interact with the machine. This type of safety system uses a transmitter which emits sequential pulses of infrared light to a receiver. When the beams are interrupted a stop signal is immediately sent to the machine.

The GuardShield Light Curtains have convenient DIP switch selectable Modes of Operation, located beneath a security door in the end caps, which offer advanced features such as: Fixed blanking (teachable), Floating blanking (one or two beam), Beam coding, Start/restart interlock, External device monitoring (EDM), 14mm resolution (finger detection), Two safety solid state and one auxillary non-safety outputs and easy maintenance with the Quick Disconnect cables (4-pin for the sender, 8-pin for the receiver).

Allen Bradley Cordsets are made to be highly dependable, versatile, safe, and rugged enough to suit a variety of industrial applications. They adhere to UL2238 cable assembly standards and the NFPA-79 electrical standard, which require rigorous quality and performance testing. The cordsets are expertly designed to offer smooth connectivity and decrease downtime.

Features and Benefits:

• 10m length
• High IP67 (NEMA 6P) enclosure rating – dust-proof and water resistant
• PUR jacket offers higher oil and chemical resistance which is better suited for harsh environments
• Overmolded connector construction provides application durability
• Ratcheting coupling nuts for vibration resistance

Note: A sender cable and a receiver cable will be required for the GuardShield Safety Light Curtains. For suitable relays, see the Minotaur range of products (e.g. 447-5587). Installation and operation of the Safety Light Curtains must be in strict accordance with accompanying operating instructions.

Certifications:

EN 1088
EN 954-1 cat. 3
EN 60204-1
CCC
CE certified
CUL certified
KC
UL approved
IP67 rated
