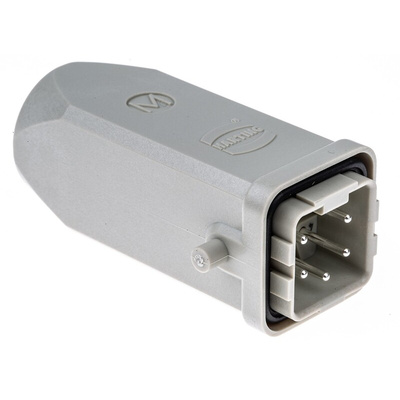

09200042611+19200030420, HARTING Han A Quick Lock Connector Set, Male, 4 Way, 10.0A, 230 → 400 V

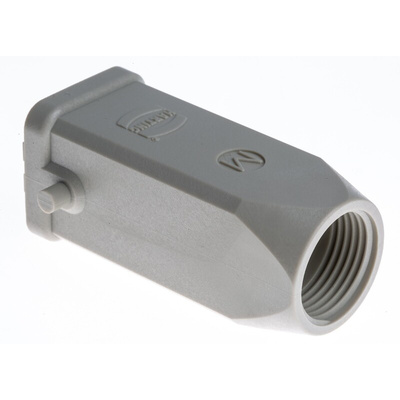

Hood Cable Plugs

• Side or top entry types
• Single lever locking
• With male insert

Note

Male and female inserts may be fitted to a hood or housing if the installation requires a reverse configuration.

Approvals

UL, CSA, SEV

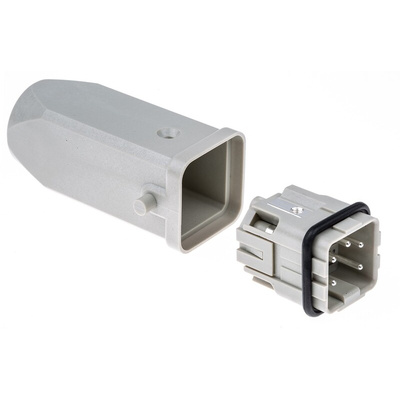

Han A® Connector Assembly Packs

Two-part packs that provide towards the assembly of Harting Han A® cable plugs, cable coupling hoods, and bulkhead/panel mounting housings. Screw terminal connection. Each pack contains a hood or housing, and a male or female insert. All the individual components are available separately from within the relevant Ranges of inserts, hoods and housings. Suitable cable glands are available separately – see stock nos. 390-088, 444-2600 and range. Available in plastic and metal bodied types.

Datasheet - 09 20 004 2611

Drawing - 09 20 004 2611

Datasheet - 19 20 003 0420

Drawing - 19 20 003 0420
