09200042611+19200031440, HARTING Connector Set, 4 + PE Way, 10A, Male, Han A, 230 → 400 V

Hood Cable Plugs

• Side or top entry types
• Single lever locking
• With male insert

Note

Male and female inserts may be fitted to a hood or housing if the installation requires a reverse configuration.

Approvals

UL, CSA, SEV

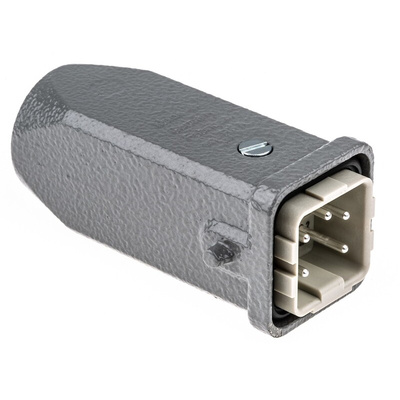

Connector Set – Hood and Insert

This connector set includes the 09200042611 connector insert and the 19200031440 hood for industrial connector applications. Heavy duty connector hoods offer protection to the contacts in the plug and locking levers ensure the hood stays firmly in place when they are being used.

Han A size 3 A standard metal hoods and housings with a slim, space saving design. These Han 3 A hoods and housings are made from robust diecast zinc with an RAL 7037 powder coated surface. IP67 protection to IEC 50529 is possible when used with a seal screw (stock number 313-6540).

Features for the 09200042611 Male Connector Insert

Screw termination
Male
Size 3 A
4 Contacts
Rated current 10 A
Conductor cross-section: 0.75 - 1.5 mm²
Polycarbonate (PC) material (insert)
Colour RAL 7032 (pebble grey)
Material contacts: Copper alloy
Surface contacts: Silver plated
Material flammability UL94 V-0
Stripping length 2.5 – 5.5 mm
Mechanical working life of ≥ 500 mating cycles

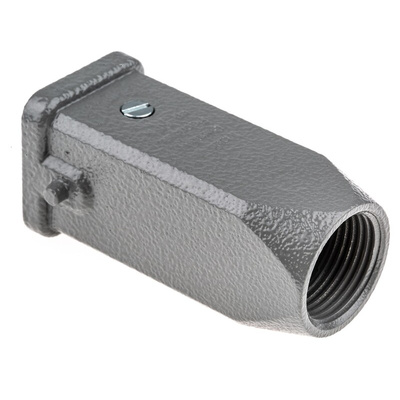

Features for the 19200031440 Top Entry Hood

Slim, space saving design
Robust diecast zinc construction
Locking levers for a secure connection
Top entry
IP44 (IP65/IP67 protection using seal screw)
Colour RAL 7037 (dust grey)

Han A® Connector Assembly Packs

Two-part packs that provide towards the assembly of Harting Han A® cable plugs, cable coupling hoods, and bulkhead/panel mounting housings. Screw terminal connection. Each pack contains a hood or housing, and a male or female insert. All the individual components are available separately from within the relevant Ranges of inserts, hoods and housings. Suitable cable glands are available separately – see stock nos. 390-088, 444-2600 and range. Available in plastic and metal bodied types.
