09330162601+19300161521, HARTING Connector Set, 16 Way, 16A, Male, Han E, 500 V

Hood Cable Plug + Male Insert

From Harting, this combination of components is part of the Han E range of Connector Assembly Packs.

Note

Male and female inserts may be fitted to a hood or housing if the installation requires such a reverse configuration.

Approvals

UL, CSA, SEV

Connector set - Hood and Insert

This connector set includes the 09330062601 male insert screw and the 19300161521 side entry hood for industrial connector applications.

Features for the 09330062601 – Han E Male insert Screw

Screw termination from 18 AWG to 14 AWG with wire protection
6 pole male insert
Polycarbonate (PC) insert
Colour is RAL 7032 (pebble grey)
Rated to 16 A and 500 V
Mechanical working life of ≥ 500 mating cycles
Contact resistance of ≤ 1 mΩ
Size: 6 B
Conductor cross-section: 0.75 - 2.5 mm²
Material contacts, - Copper alloy
Surface contacts - Silver plated
Stripping length 7.5 mm
Flammability UL 94V-0

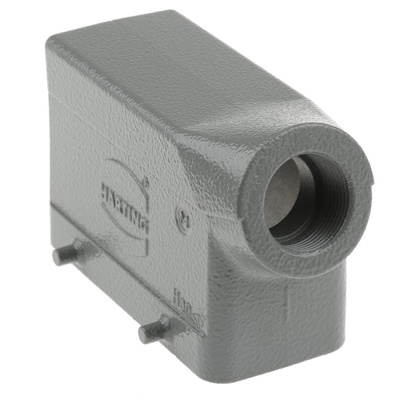

Features for the 19300161521 Hood

Double locking lever
Size: 16 B
IP65 rating
Aluminium die cast material
Colour (hood/housing) RAL 7037 (dust grey)
Low construction

Product Application Information

Harting industrial connectors are suitable for all applications that require a safe and removable electrical connection in protected electrical areas.

Han E® Connector Assembly Packs

Two-part packs that provide towards the assembly of Harting Han E® metal-bodied cable plugs, cable coupling hoods, bulkhead/panel mounting housings, and surface mounting housing sockets. Screw terminal connection. Each pack contains a hood or housing, and male or female insert. All the individual components are available separately from within the relevant Ranges of inserts, hoods, and housings. All are rated at 450 – 500V, and 16A, suitable cable glands are available separately

Datasheet - 09 33 016 2601

Drawing - 09 33 016 2601

Datasheet - 19 30 016 1521

Drawing - 19 30 016 1521
