09330062701+19300061250, HARTING Connector Set, 6 Way, 16A, Female, Han E, 500 V

Surface Mounting Housing Socket + Female Insert

From Harting, this combination of components is part of the Han E range of Connector Assembly Packs.

Note

Male and female inserts may be fitted to a hood or housing if the installation requires such a reverse configuration.

Approvals

UL, CSA, SEV

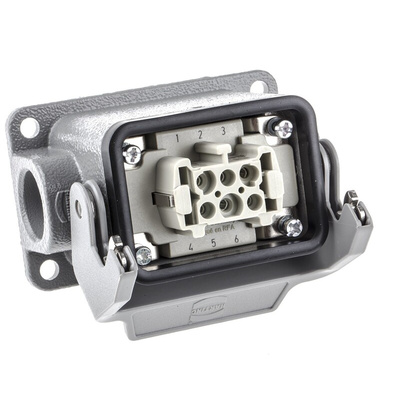

Connector Set – Housing and Insert

This connector set includes the 09330062701 female insert screw and the 19300061250 housing for industrial connector applications.

Features for the 09330062701 Insert

Female screw termination insert with wire protection
Size 6 B
6 contacts
Rated to 16 A and 500 V
Polycarbonate (PC) insert
Colour is RAL 7032 (pebble grey)
Conductor cross-section: 0.75 - 2.5 mm²
Material contacts, - Copper alloy
Surface contacts - Silver plated
Conductor cross section: AWG 18 - AWG 14
Mechanical working life of ≥ 500 mating cycles
Contact resistance of ≤ 1 mΩ

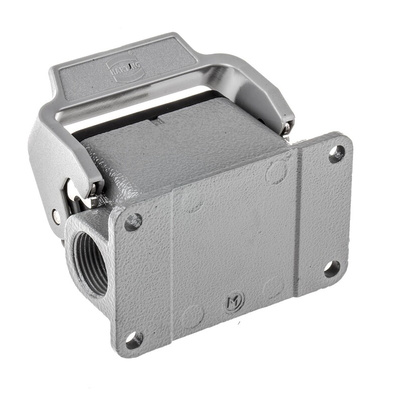

Features for the 19300061250 housing

Surface mounted housing with side entry
Size: 6 B
Low construction
Single locking lever
Material housing: Aluminium die-cast
Colour is RAL 7037 (dust grey)
IP65 rating
Flammability UL 94 V-0

Han E® Connector Assembly Packs

Two-part packs that provide towards the assembly of Harting Han E® metal-bodied cable plugs, cable coupling hoods, bulkhead/panel mounting housings, and surface mounting housing sockets. Screw terminal connection. Each pack contains a hood or housing, and male or female insert. All the individual components are available separately from within the relevant Ranges of inserts, hoods, and housings. All are rated at 450 – 500V, and 16A, suitable cable glands are available separately

Datasheet - 09330062701

Datasheet - 19300061250

Drawing - 09330062701

Drawing - 19300061250
