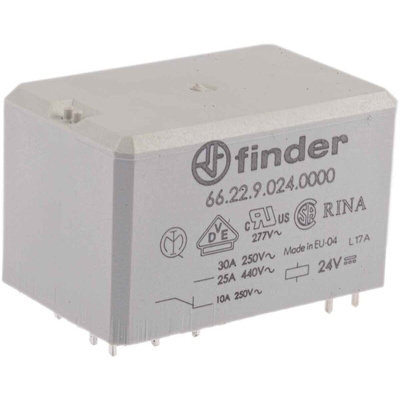

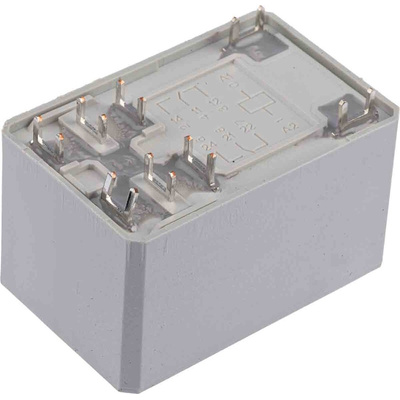

66.22.9.024.0000, Finder PCB Mount Power Relay, 24V dc Coil, 30A Switching Current, DPDT, Реле

Finder Power Relay

The Finder 66 Series 2-pole PCB mount non-latching power relay has a contact configuration of DPDT. It is actuated with a 24VDC coil and 30A switching current. This relay has reinforced insulation between coil and contacts with an 8mm clearance and creepage distance that makes it perfect for your application. This power relay is suitable for heavy-duty load switching.
Note:
For flange mount versions with 0.25in Faston style terminals, see the 66.82 series, stock number 749-5152 typically

Features and Benefits

Contact gap is greater than or equal to 1.5mm
Coil power is 1.7W
Coil resistance is 340ohm
Contact material is AgCdO
Cadmium free contacts
Isolation coil to contact is 6kV (1.2/50μs)
Dielectric strength is 4000VAC, coil to contact

Applications

Photovoltaic (PV) inverters
Domestic appliances

Certifications

DPST-NO versions IMQ
cULus
DPDT versions CSA
IMQ
RINA
cULus
VDE

Finder Approvals IMQ/UL/VDE

RINA Certificate

Datasheet
