CUB5B000, Red Lion Counter, 8 Digit, 20kHz, 9 → 28 V dc, Счетчик

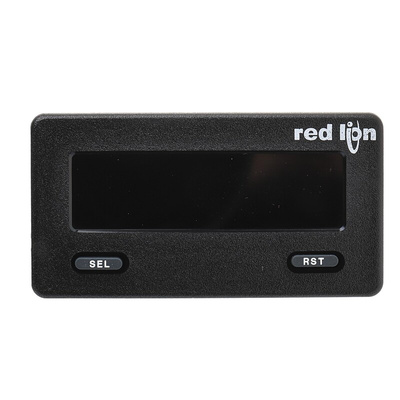

Red Lion Digital Counter

The Red Lion CUB5 series digital dual counter and rate indicator is an 8-digit, backlight LCD display miniature electronic device. It has a voltage rating ranges between 9VDC and 28VDC. The intensity of the display can be adjusted from dark room applications to bright light applications. This easy to read display offers 12mm character height. The CUB5 models cover both, digital and analogue signals including count, voltage, current, time, process, rate and temperature inputs. This counter has a maximum count frequency of 20KHz.

Features and Benefits

Anti-coincidence counting (add/add and add/sub)
Relay output
Programmable scaling for count/rate
Display colour available in red and green
Bi-directional counting, up/down control
Resettable display
Panel cut-out dimensions are 68mm x 33mm

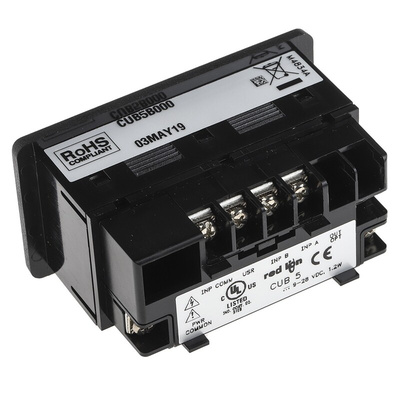

Plug-in screw terminal
Communication option cards include RS-232, RS-485, and USB\t
Operating temperature ranges between -35°C and 75°C

Applications

Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines

Certifications

IP65 rated
