CUB5R000, Red Lion Counter, 8 Digit, 20kHz, 9 → 28 V dc, Счетчик

Red Lion Digital Counter

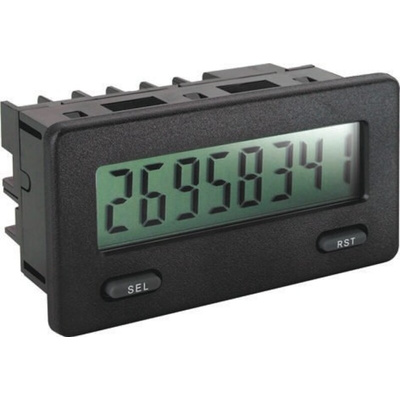

The Red Lion CUB5 series digital dual counter and rate indicator is an 8-digit, reflective LCD display miniature electronic device. It has a voltage rating ranges between 9VDC and 28VDC. The intensity of this display can be adjusted from dark room applications to bright light applications. This easy to read display offers 12mm character height. The CUB5 models cover both, digital and analogue signals including count, voltage, current, time, process, rate and temperature inputs. This counter has a maximum count frequency of 20KHz.

Features and Benefits

Anti-coincidence counting (add/add and add/sub)
Relay output
Programmable scaling for count/rate
Display colour available in red and green
Bi-directional counting, up/down control
Resettable display
Panel cut-out dimensions are 68mm x 33mm
Plug-in screw terminal
Communication option cards include RS-232, RS-485, and USB\t
Operating temperature ranges between -35°C and 75°C

Applications

Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines

Certifications

IP65 rated
CE certified
EN 61010-1
EN 61326-1 Immunity to Industrial Locations, Emission CISPR 11 Class B
IEC
NEMA 4X
UL approved
