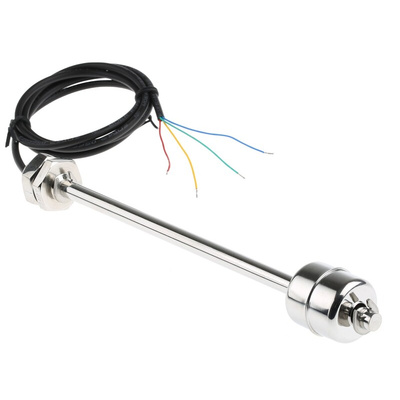

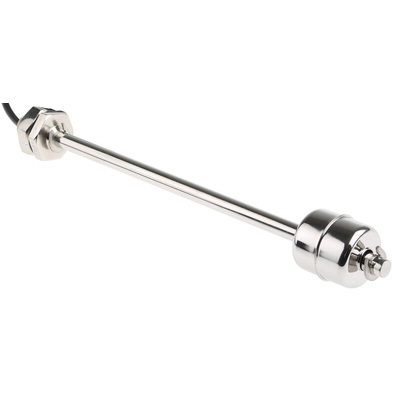

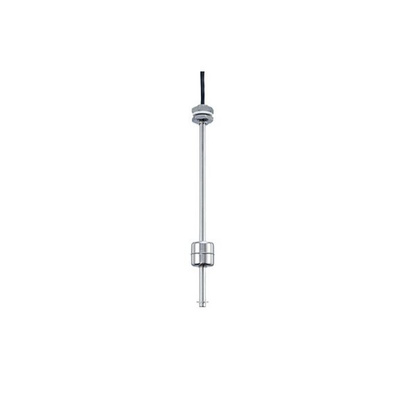

SSF67A25B175, Cynergy3 Vertical Float Switch, Stainless Steel, Direct Load, Float

Cynergy3 Float Switch

The Cynergy3 SSF67 series float switch is a vertical mount type and has direct load output. This float switch has a stainless steel body. It has a maximum operating pressure of 10bar. The switch has an upper level is 25mm and the lower level is 175mm. It is designed to give the user a long reach float switch. It comes with several switching options to cater for a wide variety of system requirements. The single float version gives high (make on rising) and low (make on fall) level indications for alarms and controls systems. The dual float versions give either make on the rise for both high and low levels (used for tank emptying control) or make on fall for both high and low levels (used for tank filling control).
Note:
All ratings in technical specifications table are for resistive loads only.

Warning:
The cable entry point must not under any circumstances be submerged
The horizontal switches should be fitted through the wall of a tank so that the cable is on the outside
The vertical type mounting thread and cable entry must be above the highest level of the liquid
.

Features and Benefits

Minimum fluid SG is 0.8
Switch differential (each level) nominal is 1mm
Internal mounting, M16 x 2 thread
Operating temperature ranges between -20°C and 135°C
Total length is 202mm
Maximum switching power is 25VA

Applications

Suited for use with aggressive liquids and hygienic applications
Petrochemical
Storage
Process control applications

Certifications

ISO 9001
