RS PRO Hand Ratcheting Crimp Tool Frame for Wire End Sleeves, 0,25 → 10mm² Wire, Обжимные клещи

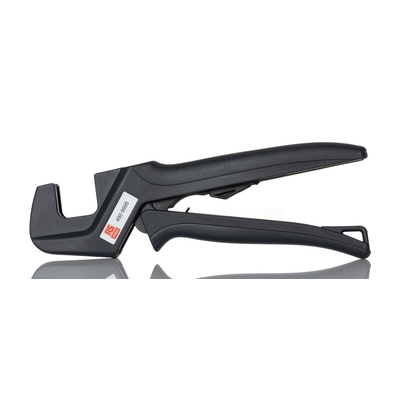

RS PRO MCT Crimping Tool Frame

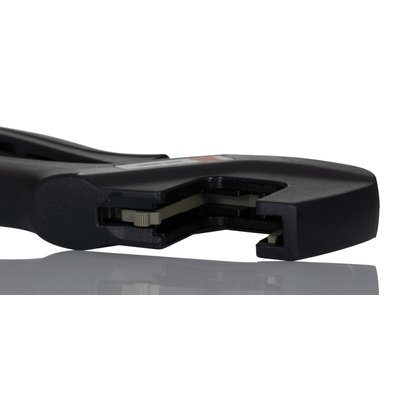

The RS PRO MCT (mobile crimp tool) is a crimping tool frame for use with MCT die sets. Easily interchangeable crimp dies are kept together with a special pin to simplify handling.
The mobile tool can accept a wide variety of die sets, covering most applications with just one tool frame. A versatile and lightweight crimping tool frame.
For a suitable die set featuring a full selection of dies please see RS PRO 492-9618

Features and Benefits

• Dimensions of 234 x 64 x 31mm


• Non-slip low friction handle


• Provides two-hand grip in the final phase of crimping, increasing comfort and productivity


• Unique mechanism significantly reduces required hand force


• The non-slip pad holds the tool in place when using on a work surface


• Full cycle crimp mechanism to ensure consistent, reliable crimp


• Ratchet release mechanism to clear miscrimps and obstructions


• Precision eccentric adjustment for consistent performance and ability to calibrate


• Hole in handle allows attachment of safety strap for working overhead


• High strength, through hardened alloy Swedish steel construction

The Importance of a High-Quality Crimp

When a crimping tool is used on a terminal, two crimps take place at the same time. One is the electrical connection between the conductor and terminal. The other is the insulation crimp which provides strain relief against vibration and tension. It is important that the electrical connection is gas-tight without any voids between the wire strands and the terminal. If there any voids present, then corrosion can occur causing resistance and excessive heat which damages the electrical connection. Using a good quality crimping tool will ensure that a full, gas-tight crimp is produced preventing future deterioration of the electrical connection and insulation breakage."
