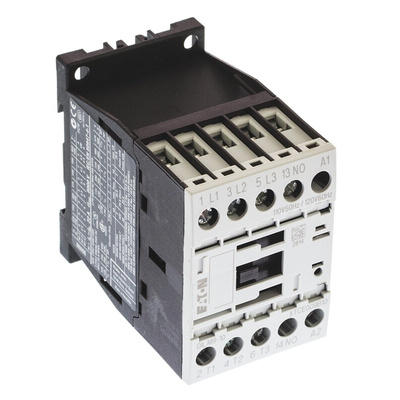

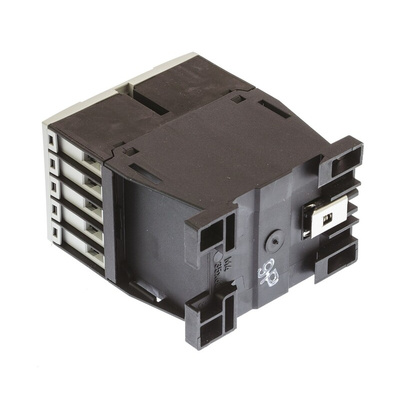

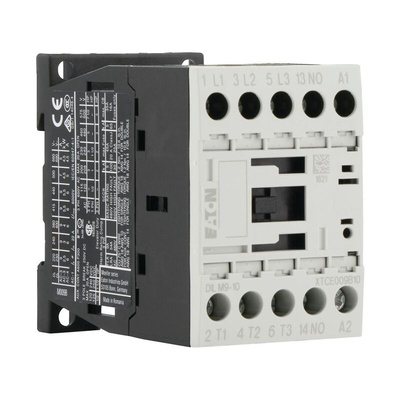

276687 DILM9-10(110V50HZ,120V60HZ), Eaton Contactor, 110 V ac Coil, 3-Pole, 9 A, 4 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 1.2Nm Tightening Torque, M3.5 Screw Size - DILM Series - 276687 DILM9-10(110V50HZ,120V60HZ)

Achieve efficient motor control in your industrial environment with this contactor from Eaton. A three-pole configuration allows you to regulate three circuits at once, so you can use fewer cables and reduce your system's wiring complexity. The unit withstands voltage surges of up to 8kV AC, helping to protect against electrical disturbances and faults. Thanks to compact dimensions of 68 (H) x 45 (W) x 75mm (D), it won't take up much room in applications with limited space. You'll find contactors such as this one used in HVAC systems and material handling equipment.

Features & Benefits

• Minimal heat dissipation of 0.2W per pole makes it energy-efficient
• Mechanical lifespan of up to 10 million operations for long-lasting performance
• Works reliably in an operating temperature range between -25°C and +60°C
• Light weight of 240g makes it easy to handle during installation and maintenance
• Terminals are located out of reach of your fingers to boost safety

How do I terminate conductors to this contactor?

You can attach conductors to this contactor using the screw terminals. Both a standard or Pozidriv screwdriver will do the job, so you don't need any specialist tools.

Note

Eaton formerly known as Moeller
