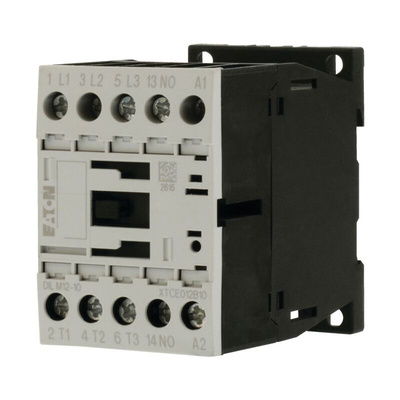

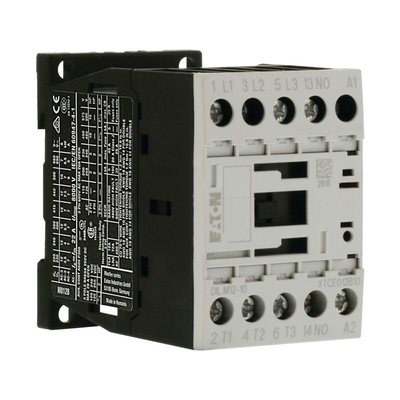

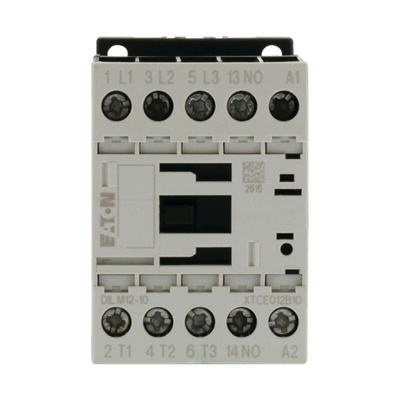

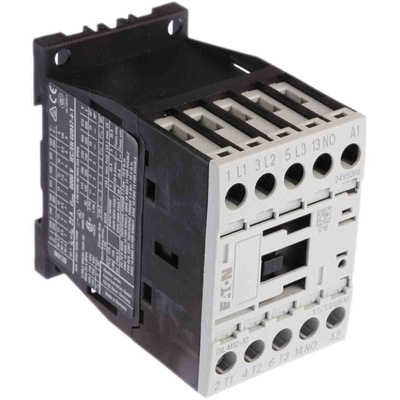

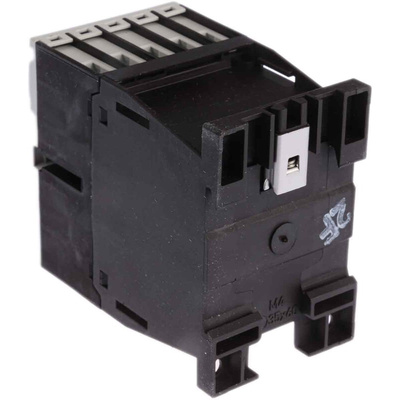

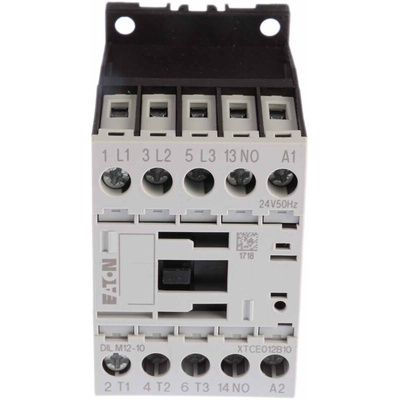

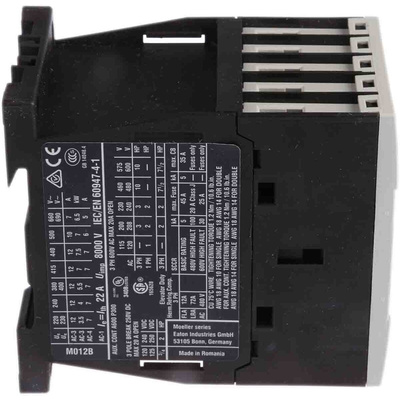

276817 DILM12-10(24V50HZ), Eaton Contactor, 24 V ac Coil, 3-Pole, 12 A, 5.5 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 20A Maximum Switching Capacity, 3P Configuration - DILM Series - 276817 DILM12-10(24V50HZ)

Boot up three-phase motors in a flash with this IE3-ready contactor from Eaton. It has three poles to give you flexibility in your setup. As it delivers up to 9000 operations per hour, it's ideal for fast-paced machinery in the manufacturing and processing industries. You can rest assured this unit will stay the course, thanks to its mechanical lifespan of 10 million cycles. With a 5.5kW power rating, it's a small but mighty device that can be relied on to control equipment like conveyor belts or packaging systems with ease.

Features & Benefits

• Supports streamlined wiring thanks to its easy-to-use screw terminals
• Rated IP20 for safe handling and actuation without the risk of shocks
• Operates without a glitch in temperatures from -25°C to +60°C

What's IE3?

IE3 is an efficiency class rating. It indicates top-notch efficiency, though the exact value achieved depends on other factors such as the number of poles and operational frequency of the system.

Can I attach an auxiliary contact to this unit?

Yes. You can add DILM32-XHI series auxiliary contactors (such as 240-2849) to your setup to boost it's power capabilities.

Note

Eaton formerly known as Moeller

Datasheet

Instruction Sheet - DILEEM/DILM12/DILA

Catalogue - Motor Starter, Protector
