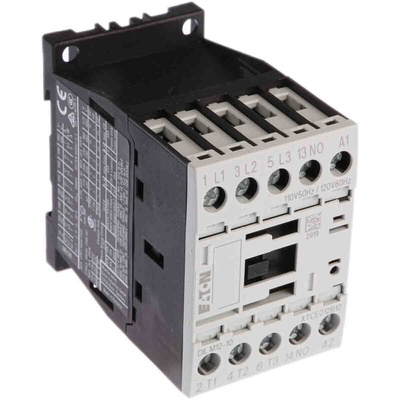

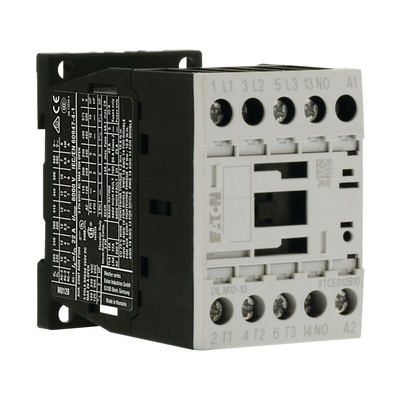

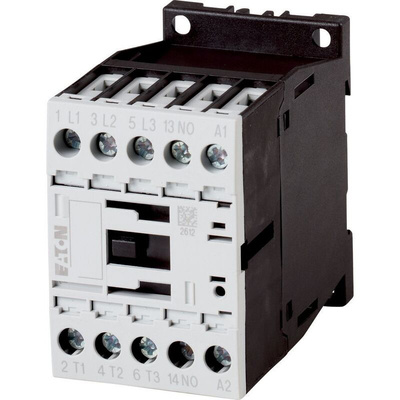

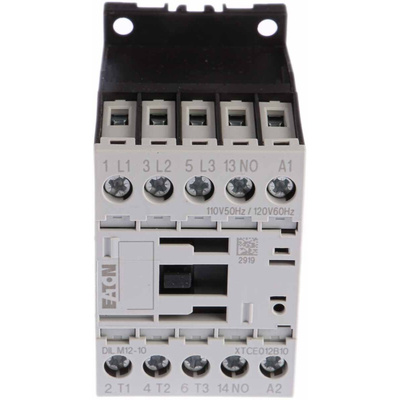

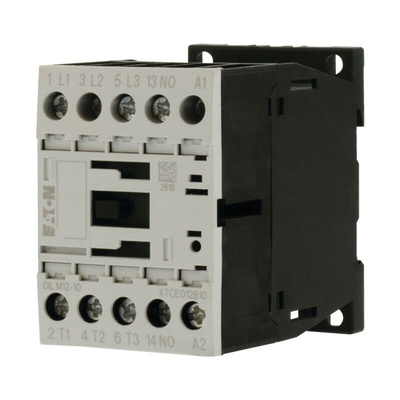

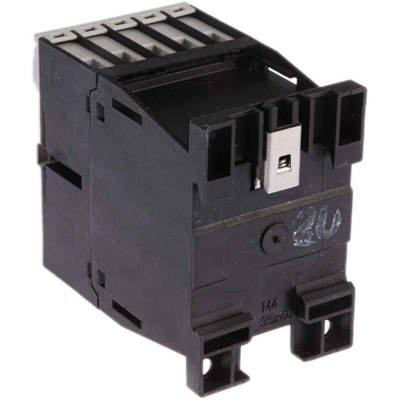

276827 DILM12-10(110V50HZ,120V60HZ), Eaton Contactor, 110 V ac Coil, 3-Pole, 12 A, 5.5 kW, 1NO, 400 V ac, Контактор

Eaton Contactor, Screw Terminal Connection Type, 8kV AC Impulse Withstand Voltage Rating - DILM Series - 276827 DILM12-10(110V50HZ,120V60HZ)

For safe, efficient control over your high-power industrial motor, switch to this 3-pole contactor from Eaton. As it can handle hefty voltages of up to 400V AC, it's a robust choice for heavy-duty use. You'll find devices like this one commonly used in the railway industry, factory automation and lighting installations. The 3NO configuration means this nifty gadget won't let current flow through the circuit until you turn it on, helping you manage your equipment effectively. Plus, with compact dimensions of just 68 (L) x 45 (W) x 125.2mm (D), it's a space-saving option for a crowded control cabinet.

Features & Benefits

• Mechanical lifespan of 10 million operations for long-lasting performance
• IP20 rating protects against electric shocks if you brush the enclosure with your hand or fingers
• Light 240g weight doesn't add strain to your setup

How much energy does this contactor lose to heat dissipation?

This DILM-series contactor is built for energy efficiency. You'll only lose 0.9W at its rated operational current, or 2.5W across all three poles at its rated thermal current for AC-1 loads.

Note

Eaton formerly known as Moeller

Datasheet - Eaton DILM12-10(110V50HZ,120V60HZ)

Instruction Sheet - DILA/DILM Series

Catalogue - Motor Starters, Contactors
