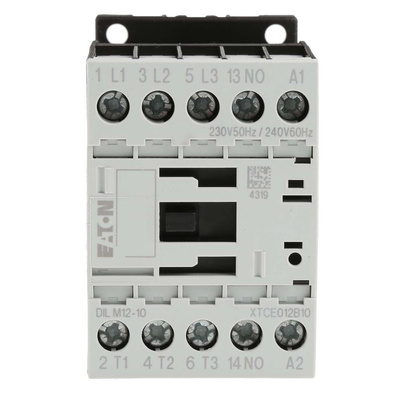

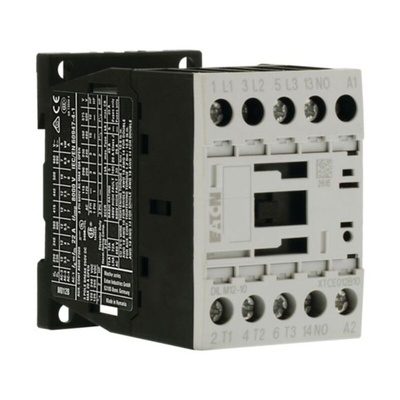

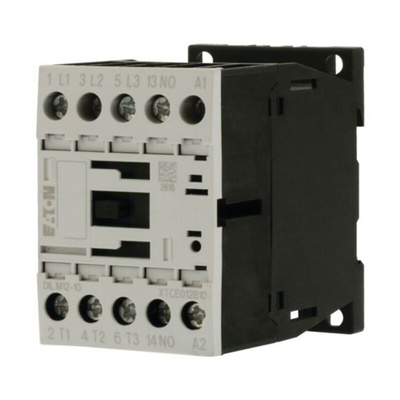

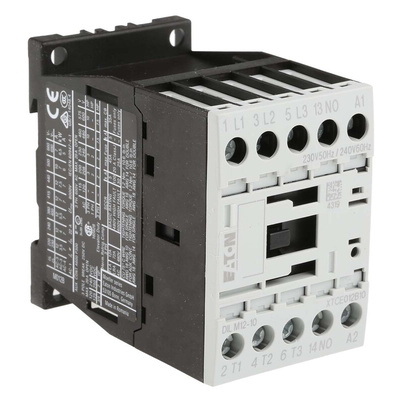

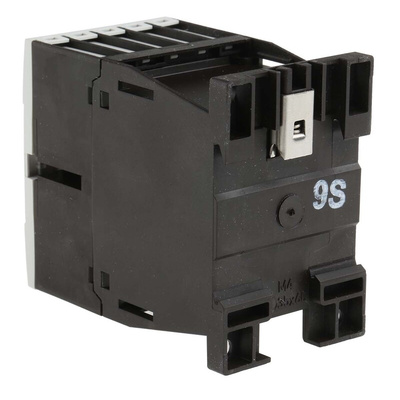

276830 DILM12-10(230V50HZ,240V60HZ), Eaton Contactor, 230 V ac Coil, 3-Pole, 12 A, 5.5 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, Finger-Proof, 400V AC Contact Voltage Rating - xStart Series - 276830 DILM12-10(230V50HZ,240V60HZ)

To get your electrical circuit up and running, use this contactor from Eaton. It's an essential component that opens or closes internal contacts when electrical energy is applied to or withdrawn from its coil. A contact current rating of 12A means you can use this unit with your high-power devices. Thanks to a switching frequency of 9000 operations per hour, it can keep up with fast-paced operations such as lighting fixtures and electric motors.

• Ambient operating temperature range from -25°C to +60°C for safe use in challenging environments
• Integral back-of-hand and finger-proof protection to prevent electric shocks
• Screw terminal design to achieve a secure wire connection
• Resistance to mechanical shock to stand up to demanding conditions

How durable is this contactor?

This contactor has a mechanical lifespan of 10,000,000 cycles, so you can depend on it for long-term use without the risk of it breaking down.

What size is the contactor?

Compact external dimensions of 68 (L) x 45 (W) x 125.2mm (D) mean this contactor takes up minimal space on a busy control panel.

Note

Eaton formerly known as Moeller

DILM12-10(230V50HZ240V60HZ) Datasheet

Instruction Sheet - Instruction Leaflet 04/22 IL03407013Z

Catalogue - Product Range
