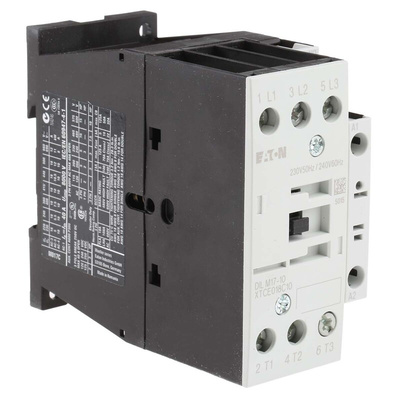

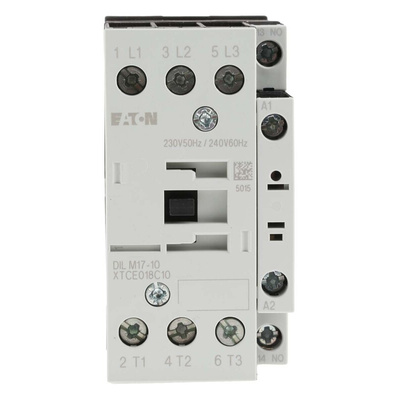

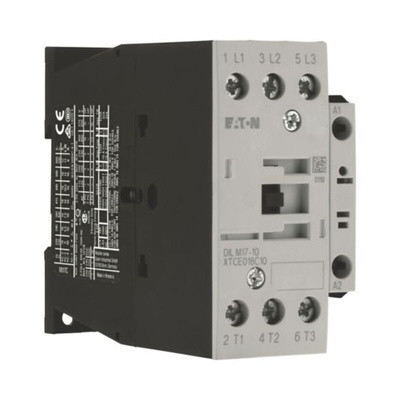

277004 DILM17-10(230V50HZ,240V60HZ), Eaton Contactor, 230 V ac Coil, 3-Pole, 17 A, 7.5 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, Back-of-Hand-Proof, 10g Mechanical Shock Resistance - xStart Series - 277004 DILM17-10(230V50HZ,240V60HZ)

Quickly switch power to your circuit and turn machinery on and off using this contactor from Eaton. It opens its contacts when its internal coil senses an electrical command, letting power flow to the circuit. With a current rating of 17A, the unit's up to the challenge of switching high-power hardware such as electric motors in factory settings. As this device has three poles, it's fit for jobs where you need to control three-phase electrical systems.

• Space-saving external dimensions of 85 (L) x 56 (W) x 138mm (D) to fit into busy setups
• Wide operating temperature range of -25°C to +60°C to withstand harsh settings
• Comes with finger and back-of-hand protection to prevent electric hazards

How often can I use this contactor?

This contactor supports a switching frequency of 5,000 operations per hour, so it's a reliable option for use with fast-paced applications.

Is this contactor shock-resistant?

Yes, it can handle mechanical shock of up to 10g, so you can rely on it to stay the course in demanding conditions.

Note

Eaton formerly known as Moeller

DILM17-10(230V50HZ240V60HZ) Datasheet

Instruction Sheet - Instruction Leaflet 04/22 IL03407013Z

Catalogue - Product Range
