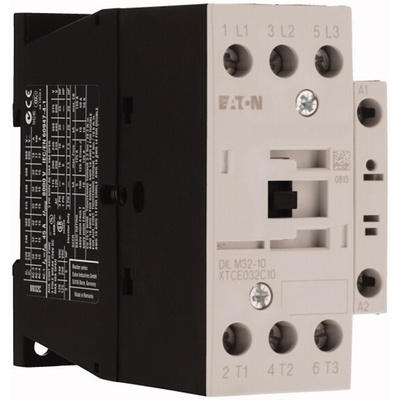

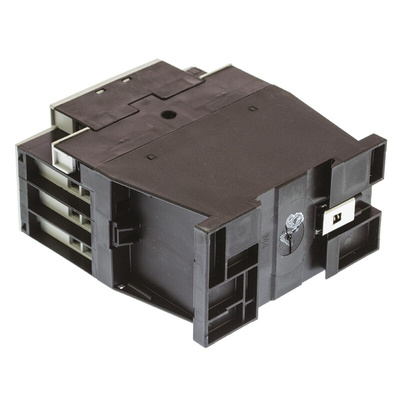

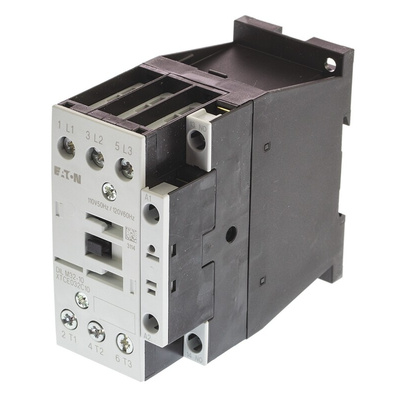

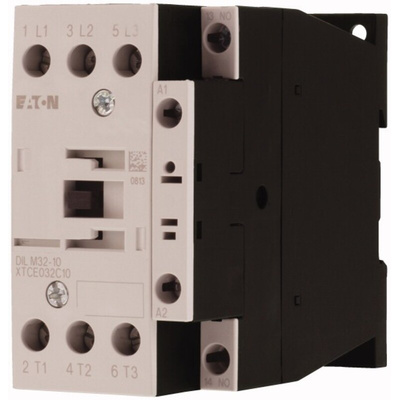

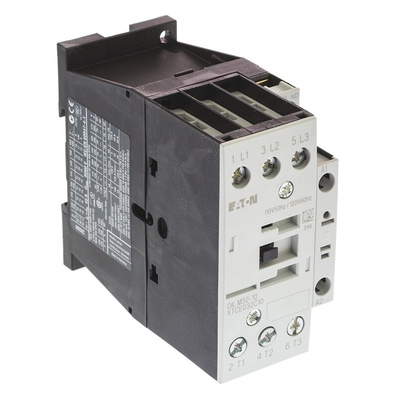

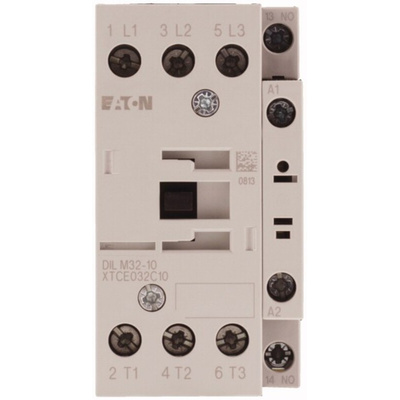

277257 DILM32-10(110V50HZ,120V60HZ), Eaton Contactor, 110 V ac Coil, 3-Pole, 25 A, 15 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 8kV AC Rated Inpulse Withstand Voltage, DIN Rail Mount - DILM Series - 277257 DILM32-10(110V50HZ,120V60HZ)

Use this contactor from Eaton to operate and control your industrial motors safely. The three-pole construction means it's designed to support three-phase circuits. As the unit falls into the AC-1, NAC-3 and AC-4 utilisation categories, it's a versatile option that you can use with both inductive and non-inductive loads. For safety, s thermoplastic housing offers protection against impact and also insulates against the risk of electric shocks. Contactors like this are commonly found in steel mills and foundries.

Features & Benefits

• Power rating of 15kW for compatibility with heavy-duty applications
• Screw termination method is easy and needs only a simple Pozidriv size 2 screwdriver
• Operating temperature range of -25°C to +40°C for reliable use in extreme climates
• Mechanical lifespan of 10,000,000 for long-term use

Is this contactor waterproof?

No, this contactor isn't waterproof, so you must keep it away from water to ensure optimal performance.

Can this contactor withstand voltage spikes?

Yes, this contactor can resist up to 8kV of surge voltage, so it remains stable even in the event of a sudden inrush.

Note

Eaton formerly known as Moeller

Eaton DILM32-10(110V50HZ,120V60HZ) Contactor Datasheet

Instruction Sheet - DILM32
