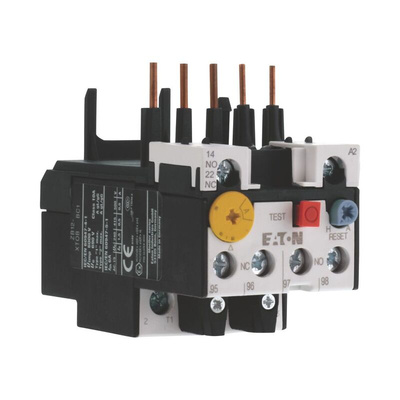

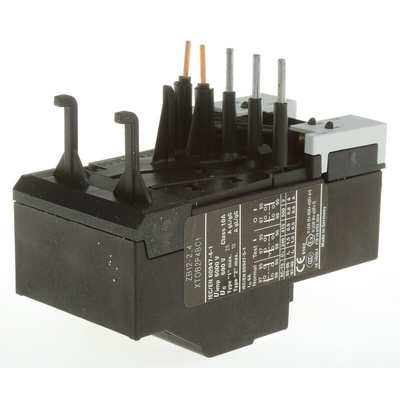

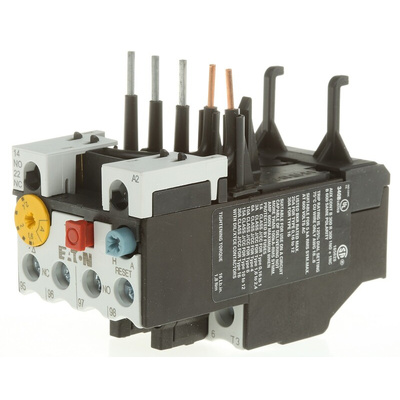

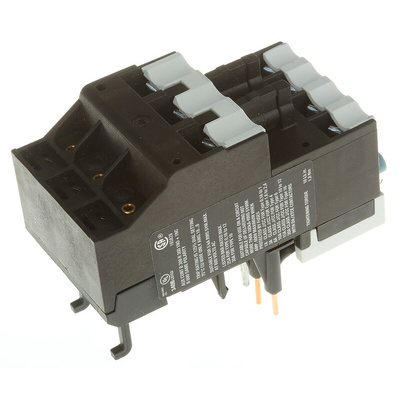

278437 ZB12-2,4, Eaton Overload Relay 1NO + 1NC, 1.6 → 2.4 A F.L.C, 2.4 A Contact Rating, 6 W, 500 Vac, Moeller, Реле

Eaton Overload Relay, 6kV Rated Impulse Withstand Voltage, Direct Mounting - 278437 ZB12-2,4

Looking for a robust line of defence for your motor circuits? Protect them against electrical hazards with this overload relay from Eaton. It works hand-in-hand with your contactor, monitoring the network and cutting power in the event of a short circuit or current overload. This saves your equipment from potential damage and prolongs its lifespan. The relay's thermoplastic body does double duty as impact cover and insulation to ensure safe operation in harsh environments. Thanks to manual and automatic reset options, you can quickly get your appliance up and running once you've fixed a problem. Components like this one are often found on assembly lines.

Features & Benefits

• Power rating of 6W makes it a good fit for light-duty applications
• Performs reliably in temperatures ranging between -5°C and +55°C, so it's suitable for demanding conditions
• Screw termination is hassle-free as it doesn't need complex tools
• Light weight of 142g means it's easy to handle during installation

Is this relay finger-safe?

Yes, this unit's IP20 rating indicates that it's finger-safe as it resists objects larger than 12.5mm. This limits your exposure to live parts and cuts out the risk of electric shocks.

Note

Eaton formerly known as Moeller

Datasheet - Eaton ZB12-2,4

Installation Sheet - 278437 ZB12-2,4

Catalogue - Motor Starters, Contractors
