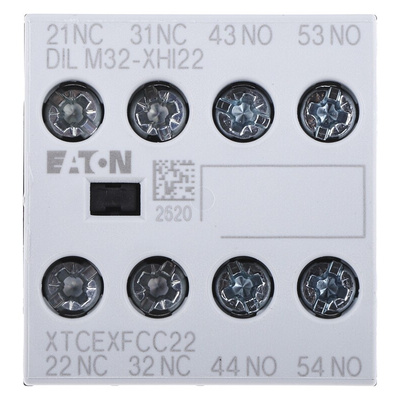

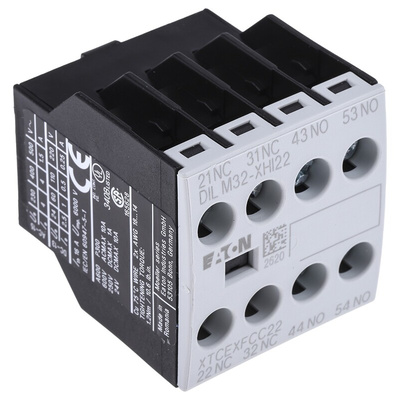

277377 DILM32-XHI22, Eaton Auxiliary Contact, 4 Contact, 2NC + 2NO, Front Mount

Eaton Auxiliary Contact, 4 Poles, Front Mounting Style - 277377 DILM32-XHI22

Snap your machinery into action with this auxiliary contact from Eaton. It switches along with an attached component to send on and off signals to linked hardware, keeping your processes running smoothly. Interlocked contacts mean the device's circuits open and close together every time to stop your equipment from getting mixed messages. Fitting the unit to a contactor (such as 250-9407) is a breeze thanks to simple tool-free mounting. Screw-clamp terminals are on hand to hold conductors tight, even if there's disruptive movement. Look for auxiliary contacts like this one in motor starters and power distribution systems.

Applications

• Impulse withstand voltage of 6,000V AC keeps it working through surges
• IP20 rating indicates protection from objects, such as tools and wires, up to 12mm
• Low total power loss of 2.6W for energy-efficient signalling
• Accepts wires sized between 0.75 and 2.5mm², giving you flexible connectivity
• Wide operating temperature range of -25°C to +60°C means it stands up to intense conditions

What's the service life of this auxiliary contact?

This unit has a lifespan of 1.3 million cycles, so it's a cert to provide long-lasting appliance control.

Note

Eaton formerly known as Moeller

DILM32-XHI22 Datasheet

Instruction Sheet - Instruction Leaflet 04/22 IL03407013Z

Catalogue - Product Range
