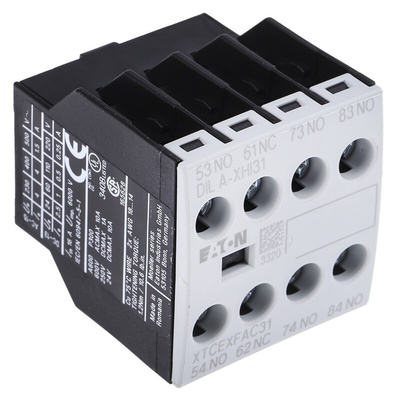

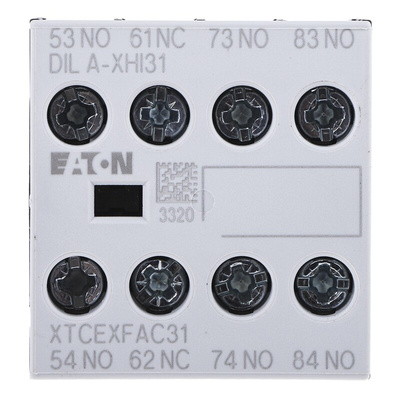

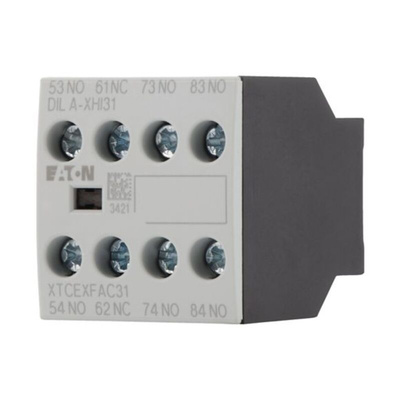

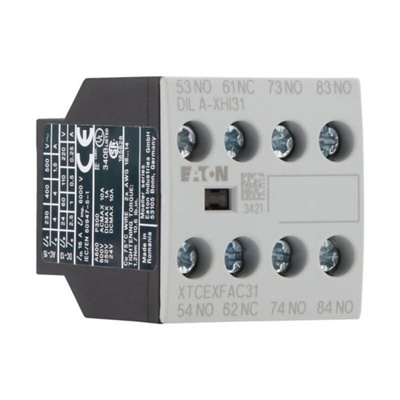

276427 DILA-XHI31, Eaton Auxiliary Contact, 4 Contact, 1NC + 3NO, Front Mount

Eaton Auxiliary Contact, 4A Current Rating, Screw Terminals - DILA Series - 276427 DILA-XHI31

Boost the switching capacity of your DILA contactor relays with this auxiliary contact from Eaton. By adding an extra four contacts to your setup, the device helps with the smooth control of automated processes, medical equipment and security systems. Thanks to its 220V DC/500V AC voltage rating, the unit takes care of heavy-duty industrial applications without breaking a sweat. Measuring just 45 (L) x 36 (W) x 38mm (H), it takes up little space in densely packed setups. You can count on reliable performance in a wide temperature range between -25°C and +60°C.

Features & Benefits

• 9000 switching operations per hour for use with demanding systems
• IP20 rating means it's touch-proof and protected from objects larger than 12mm
• Electrical lifespan of 1.3 million cycles for long-lasting durability

How do I mount this auxiliary contact?

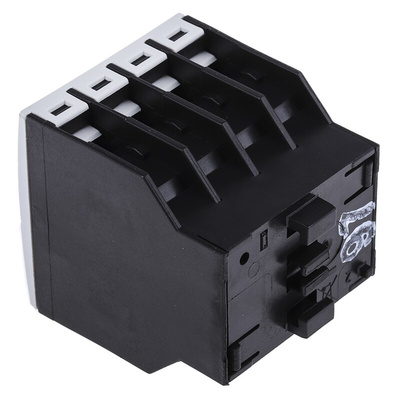

There are clips on the back, so you can mount this device directly to the front of your relay.

How do I connect this auxiliary contact to my main switching equipment?

This component has screw terminals, so you simply insert the conductors and tighten the screws. This achieves a secure fit that helps prevent accidental disconnections and downtime.

Note

Eaton formerly known as Moeller

DILA-XHI31-4930674 Datasheet
