2708232, Phoenix Contact SUBCON-PLUS 9 Way Right Angle Cable Mount D-sub Connector Plug, 2.77mm Pitch, Разъем

Phoenix Contact SUBCON-PLUS PROFIBUS D-Sub Connectors

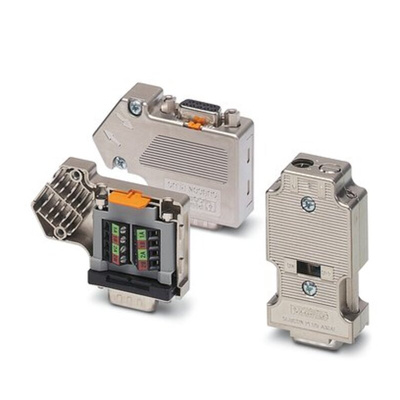

Phoenix Contact SUBCON-PLUS PROFIBUS 9 pin D-sub connectors are designed for use in PROFIBUS systems up to 12 Mbps allowing fast connection of incoming and outgoing bus cables under field conditions. These SUBCON-PLUS PROFIBUS d-sub connectors have an integrated terminating resistor which can be activated externally by a slide switch, surge protection, a shielded ABS housing and can all be used with standard PROFIBUS cables with an outside diameter of 8mm (type A & B)

For PROFIBUS cable quick stripping tool see stock number 801-8967
For cable stripping tool see stock number 803-4326
For screwdriver see stock number 803-4351

SUBCON-PLUS-PROFIB/SC2

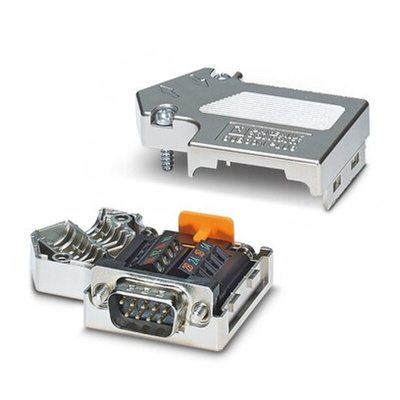

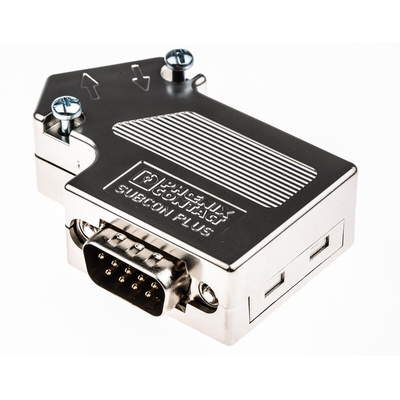

A right angled, D-SUB connector from Phoenix Contact. The 9-contact connector is part of the SUB-CON PLUS series and has a termination resistor that can be connected/switched on through the slide switch.
Designed for using in the PROFIBUS and CAN systems the shielded connector ensures a maximum transmission rate.

Features and Benefits

• 35° angled cable entry and an internal connection unit which can be turned around enabling cable insertion from the left or the right and a screw connection
• 9 Copper alloy contacts
• Pitch of 2.77mm
• Metal plated ABS housing
• Operating temperature of -20°C to +75°C
• Shock and vibration resistance according to EN 50155

BUS connectors

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief

Datasheet 2708232
