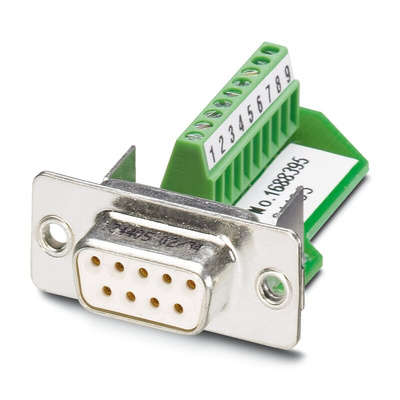

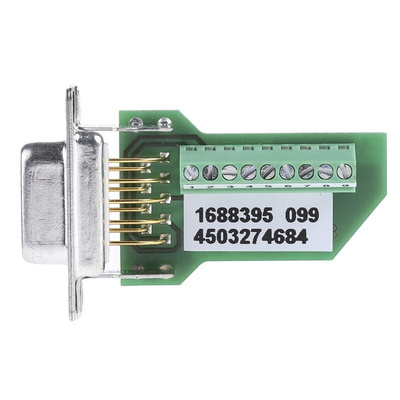

1688395, Phoenix Contact VS-09-BU-DSUB/9-MPT-0.5 9 Way Panel Mount D-sub Connector Socket, Разъем

Phoenix Contact D-Sub Connector, 60V Rated Voltage, 5A Current Rating - VS-09-BU-DSUB/9-MPT-0.5 - 1688395

Need an efficient alternative to an adapter? Skip the middleman with this D-sub connector from Phoenix Contact. Fitting it to your computer adds a VGA port, so you can easily plug in legacy devices.
The unit's gold-over-nickel-plated contacts are resistant to corrosion for reliable use in humid environments. Steel housing is on hand to shield against EMI and support crystal-clear signals. At 12.6mm wide, this is a compact option for use in cramped systems.
An IP20 rating means the connector's touchproof and safe to handle during installation. You can also make it dustproof and waterproof by adding a mounting frame (881-0432), which upgrades it to an IP67 rating. Use it to give legacy electronics and accessories a new lease of life by making it simple to attach them to a computer or panel.

Features & Benefits

• Screw termination makes wiring a cinch
• Copper contacts are highly conductive for reliable data transmission
• Performs reliably in a temperature range between -20°C and +80°C
• Push-pull locking mechanism keeps the unit firmly in place
• Light 13.98g weight puts minimal strain on your setup

Datasheet 1688395

Line Drawing - 1688395
