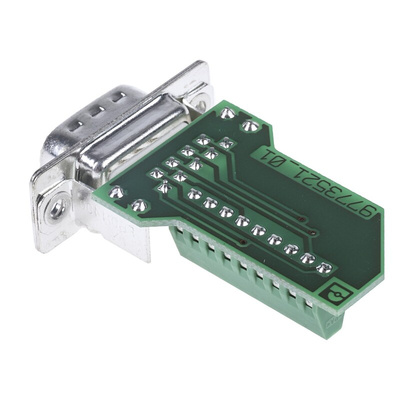

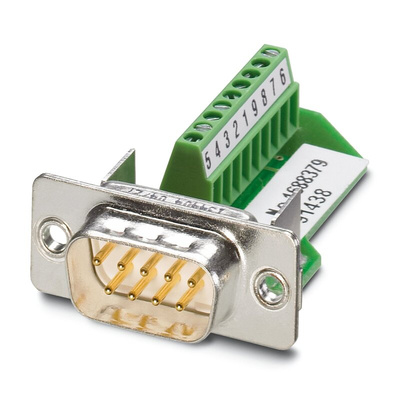

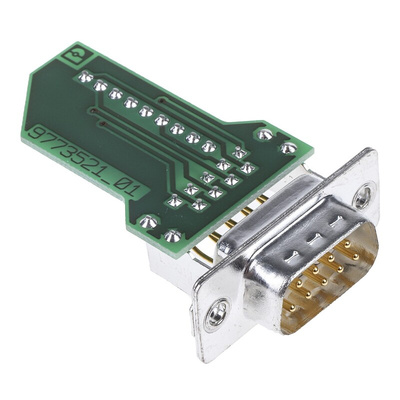

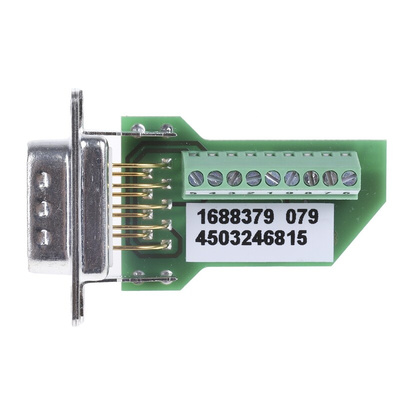

1688379, Phoenix Contact VS-09-ST-DSUB/10-MPT-0.5 9 Way Panel Mount D-sub Connector Plug, Разъем

Phoenix Contact D-Sub Connector, Straight Body, 5A Current Rating - VS-09-ST-DSUB/10-MPT-0,5 - 1688379

Need a fuss-free way to attach wiring to your circuit? Choose this D-sub connector from Phoenix Contact. It lets you plug in an external cable to transmit data to an electronic device. Handy mounting holes make it simple to screw securely onto a panel.
The unit has robust copper-alloy contacts that are highly conductive, so you can be sure of steady signal transmissions. For durability, they're plated with gold over nickel, which stands up to corrosion.
As it tolerates over 200 insertion/withdrawal cycles, you can plug and unplug this connector multiple times without wearing it out. Thanks to its rugged steel housing, it also withstands impact in industrial environments. A wide operating temperature range between -20°C and +80°C makes it a safe bet for use in harsh environments.

Features & Benefits

• UL 94-V0 flammability rating means burning stops in 10 seconds in the event of a fire
• Compact external dimensions of 31 (L) x 12.6 (W) x 41.8mm (D) to fit into cramped spaces
• IP20 rating means it's touch-proof, for safe handling
• Housing is plated in tin, so it withstands mechanical wear

Datasheet 1688379

Line Drawing - 1688379
