Phoenix Contact Variosub rewireable D-Sub Connectors
A Phoenix Contact range of rewireable plug connectors specially designed for data technology in an industrial environment.
Features and Benefits
• Push-pull locking mechanism
• Contact inserts comprise of a conventional D-Sub connector mated to a PCB containing screw terminals for ease of use and re-use
• Up to IP67 protection rating and optional EMC protection
• Male and Female available
• Gold over nickel contacts
• 12.6mm wide
• IP20 protection
Typical Applications
The connectors are suitable for applications requiring a high degree of protection to high temperature or mechanical stress.

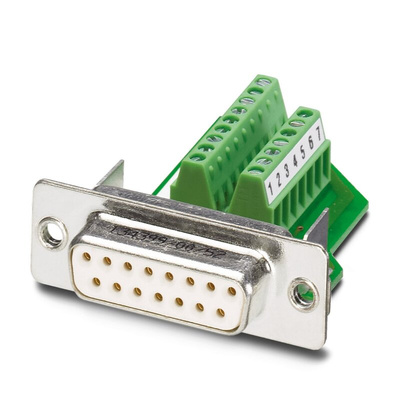

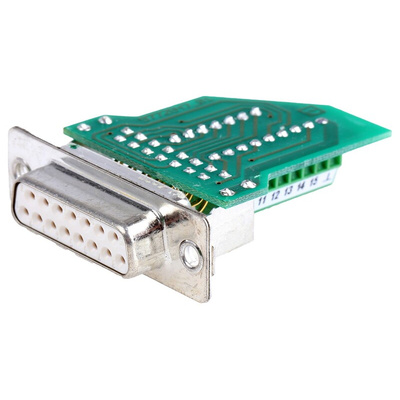

Phoenix Contact 15-Way D-Sub Connector Socket, 5A, 60V AC/DC - VS-15-BU-DSUB/15-MPT-0.5 - 1688094
Use this D-subminiature adapter socket from Phoenix Contact to connect peripheral serial devices to your computer. It has copper alloy contacts that are durable and highly conductive for a reliable connection. The contacts are plated in gold-over-nickel to provide corrosion resistance and deliver a long service life. The connector has a polybutylene terephthalate (PBT) housing that offers impact resistance as well as effective insulation from electrical hazards, making it a safe and reliable choice.
A push-pull locking mechanism ensures a secure hold that won't accidentally disconnect, even in the event of heavy vibrations. For added convenience, the unit has screw terminals for quick and simple wiring. Thanks to its light weight of just 18.5g, it puts minimal strain on your equipment. You'll find sockets like this used in domestic, commercial and industrial computing applications.
• IP20 (ingress protection) rating for resistance to dust and objects larger than 12mm in size
• Voltage rating of 60V for use in low-voltage applications
• Wide operating temperature range of -20°C to +80°C for use in demanding environments
Datasheet 1688094Datasheet 1688094Line Drawing - 1688094| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
