1688078, Phoenix Contact VS-15-ST-DSUB/16-MPT-0.5 15 Way Panel Mount D-sub Connector Plug, Разъем

Phoenix Contact Variosub rewireable D-Sub Connectors

A Phoenix Contact range of rewireable plug connectors specially designed for data technology in an industrial environment.

Features and Benefits

• Push-pull locking mechanism
• Contact inserts comprise of a conventional D-Sub connector mated to a PCB containing screw terminals for ease of use and re-use
• Up to IP67 protection rating and optional EMC protection
• Male and Female available
• Gold over nickel contacts
• 12.6mm wide
• IP20 protection

Typical Applications

The connectors are suitable for applications requiring a high degree of protection to high temperature or mechanical stress.

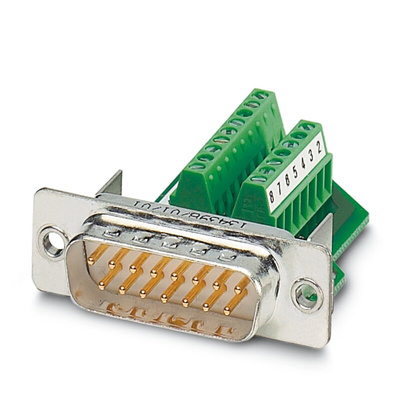

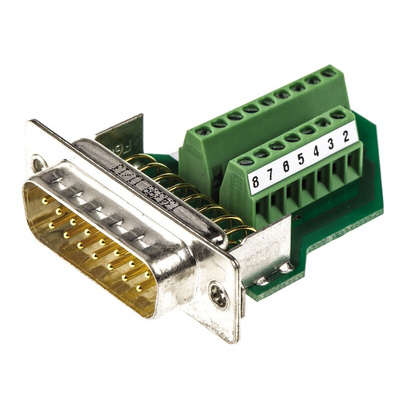

Phoenix Contact D-Sub Connector Plug, 60V, 5A - VS-15-ST-DSUB/16-MPT-0.5 - 1688078

Transmit electric current and secure electrical conductors together with this D-sub connector plug from Phoenix Contact. The unit creates a reliable connection between a PCB (printed circuit board) terminal block and a D-sub connector with ease. With a housing made of polybutylene terephthalate (PBT), it's moisture-proof, impact-resistant and highly durable, so it can efficiently withstand the elements. For speedy identification, you'll find individual labels which don't interfere with the component's function.
This unit has an Underwriter's Laboratory (UL) rating of UL94V-0, which indicates that in the event of a fire, burning will stop after 10 seconds. With a slim width of 12.6mm, this component is suitable for installation in enclosures where space is tight. Its contacts are plated with gold over nickel, which makes it corrosion-resistant and able to withstand wear and heat. As this makes it a practical choice for harsh environments, you'll find it used in heavy-duty industrial machinery and industrial automation.

• Copper-alloy contact material for reliable connections
• Screw termination method for fast and simple installation
• 15 contacts for effective space maximisation
• Wide operating temperature range of -20°C to +80°C for use in demanding conditions

Datasheet 1688078

Line Drawing - 1688078
