Phoenix Contact Variosub rewireable D-Sub Connectors

A Phoenix Contact range of rewireable plug connectors specially designed for data technology in an industrial environment.

Features and Benefits

• Push-pull locking mechanism
• Contact inserts comprise of a conventional D-Sub connector mated to a PCB containing screw terminals for ease of use and re-use
• Up to IP67 protection rating and optional EMC protection
• Male and Female available
• Gold over nickel contacts
• 12.6mm wide
• IP20 protection

Typical Applications

The connectors are suitable for applications requiring a high degree of protection to high temperature or mechanical stress.

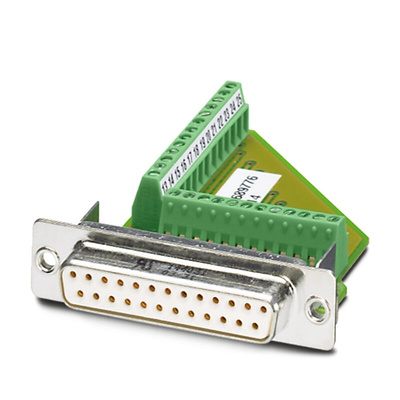

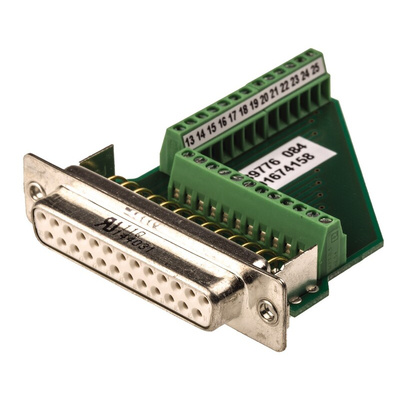

Phoenix Contact Panel Mount D-Sub Connector Socket, 25 Way, 60V AC/DC - VS-25-BU-DSUB/25-MPT-0.5 - 1689776

Use this robust D-subminiature connector socket from Phoenix Contact to link serial devices for effective communication. It consists of a 25-contact D-sub connector mated to a PCB (printed circuit board) header that allows you to connect multiple wires at the same time. The contacts are made of highly conductive copper plated in corrosion-resistant gold-over-nickel material, ensuring a long-lasting connection.
This connector has compact dimensions of 53 (length) x 12.6 (width) x 55.8mm (depth), which make it a good choice for use in setups where space is limited. For electrical safety, the housing is made of polybutylene terephthalate (PBT) plastic, which serves as an insulator to protect you against electric shocks. Its voltage rating of 60V and current rating of 5A make it a practical choice for use in low-duty and medium-duty applications.

• Screw termination method for quick and simple wiring without specialist tools
• Broad operating temperature range of -20°C to +80°C for use in demanding environments
• Light weight of 19.2g to reduce strain on your equipment

Datasheet 1689776

Datasheet 1689776

Line Drawing - 1689776
