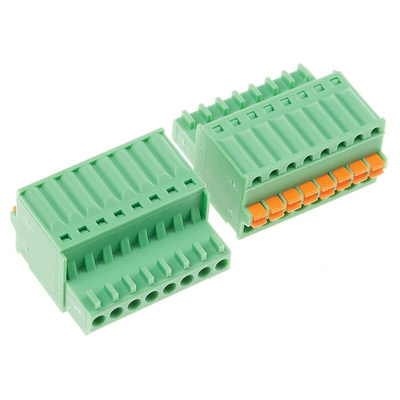

1881383, Phoenix Contact 2.5mm Pitch 8 Way Pluggable Terminal Block, Plug, Push-In, Spring Cage Termination

FK-MC PCB Connectors - Phoenix Contact

The FK-MC series from Phoenix Contact are MICRO COMBICON plug-in PCB connectors. These connectors are made user-friendly with no tools needed for installation as it is simply a push in technology, along with a defined contact force the ensures the connection remains stable over the long term. Not to mention, these PCB connectors are easily tested with a 1mm diameter test connector that simply plugs in, allowing for rapid testing. The FK-MC series are rated for 4 A with a voltage of 160 V and boasts a 2.5mm pitch for versatile use.

The contact material is the FK-MC connectors are Cu (Copper) alloy and they're built in a green polyamide housing. Colour coded actuation levers can be found on the front and allow you to form a strong connection without the need for any specialist tools.

Features and benefits:

• Spring clamp technology for quick connection - no tools needed


• High copper content for low resistance and greater conductivity


• Integrated test points for testing with connector inserted


• 2 to 12-way versions


• Flammability rating UL94 V0


• Defined contact force allows your connection to stay strong over-time


• 1mm testing port for convenient testing


• Operation and conductor connection from one direction enable integration into front of the device

Applications:

The MICRO COMBICON 0.5 series can be used typically in applications such as, but not limited to, control wiring, instrumentation, control and measurement and industrial electronics.

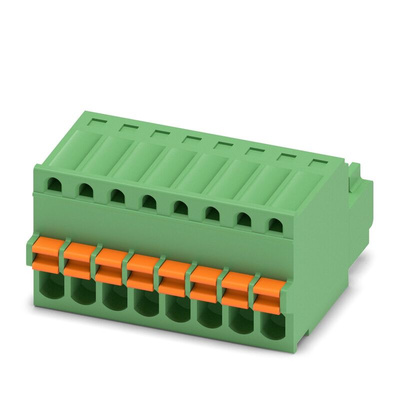

Phoenix Contact FK-MC 0.5/ 8-ST-2.5 Series Pluggable Terminal Block, 4A, 80V - 1881383

This Phoenix Contact pluggable terminal block with a pitch of 2.5 mm and 8 contacts is a highly reliable terminal block designed for applications in automation, electronics, electrical, and mechanical industries. With a green colour and a spring cage termination method, this nylon terminal block offers a current rating of 4A and a voltage rating of 80V, making it suitable for high voltage applications.

Features & Benefits

• Plug and play design for easy installation and maintenance
• Spring cage termination method ensures secure connections without the need for tools
• Colour coded actuation lever for intuitive use
• 8 contacts for versatile connectivity options
• Nylon material for durability and reliability
• 2.5 mm pitch for compact and space saving installations
• Green colour for easy identification in complex setups
• High voltage rating of 80V for robust performance

Applications

• Ideal for printed circuit board connectors
• Suitable for automation systems
• Perfect for electrical control panels
• Used in machinery for industrial applications

Can it handle high current applications?

This Phoenix Contact pluggable terminal block is designed to handle a nominal current of 4A, making it suitable for various high-current applications without any issues.

Will it provide a secure connection without the need for tools?

Yes, the spring cage termination method ensures a stable and secure connection without requiring any additional tools for installation or maintenance.

Is this terminal block suitable for use in electronic control panels?

Yes, the Phoenix Contact pluggable terminal block is perfect for use in electronic control panels due to its compact design and reliable performance.

Can it be used in industrial automation systems?

Yes, this terminal block is ideal for use in industrial automation systems where a reliable connection is essential for smooth operation.

Does the green colour serve any specific purpose?

The green colour of this terminal block allows for easy identification in complex setups, making maintenance and troubleshooting more efficient.

Datasheet 1881383

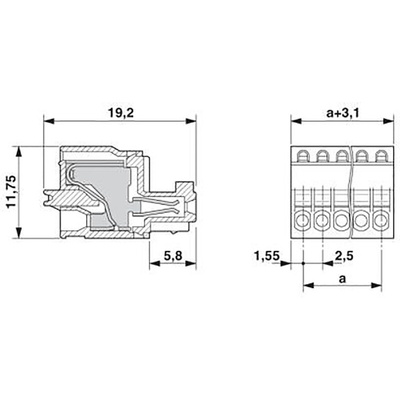

1881383 Drawing
