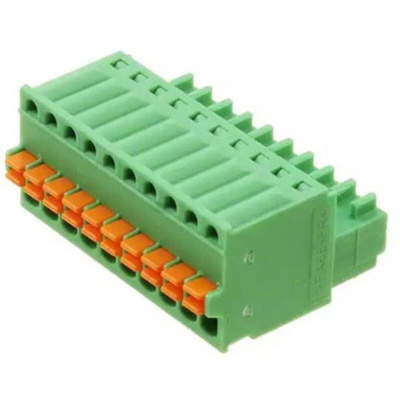

1881406, Phoenix Contact 2.5mm Pitch 10 Way Pluggable Terminal Block, Plug, Cable Mount, Spring Cage Termination

FK-MC PCB Connectors - Phoenix Contact

The FK-MC series from Phoenix Contact are MICRO COMBICON plug-in PCB connectors. These connectors are made user-friendly with no tools needed for installation as it is simply a push in technology, along with a defined contact force the ensures the connection remains stable over the long term. Not to mention, these PCB connectors are easily tested with a 1mm diameter test connector that simply plugs in, allowing for rapid testing. The FK-MC series are rated for 4 A with a voltage of 160 V and boasts a 2.5mm pitch for versatile use.

The contact material is the FK-MC connectors are Cu (Copper) alloy and they're built in a green polyamide housing. Colour coded actuation levers can be found on the front and allow you to form a strong connection without the need for any specialist tools.

Features and benefits:

• Spring clamp technology for quick connection - no tools needed


• High copper content for low resistance and greater conductivity


• Integrated test points for testing with connector inserted


• 2 to 12-way versions


• Flammability rating UL94 V0


• Defined contact force allows your connection to stay strong over-time


• 1mm testing port for convenient testing


• Operation and conductor connection from one direction enable integration into front of the device

Applications:

The MICRO COMBICON 0.5 series can be used typically in applications such as, but not limited to, control wiring, instrumentation, control and measurement and industrial electronics.

The Phoenix Contact PCB connector are used for connecting conductors to printed circuit boards for the transmission of signals, data, and power. The connection methods and mounting types of this connection technology provide a high level of flexibility for almost all applications.

Time saving push-in connection
Copper alloy contact material
