1881655, Phoenix Contact 2.5mm Pitch 12 Way Pluggable Terminal Block, Plug, Through Hole, Solder Termination

4932591
Номер производителя: 1881655Производитель: Phoenix Contact
Цена за шт. (норма упаковки 5 шт)
1540.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact MICRO COMBICON MC, MCV, MCD & MCDV Series 2.5mm Terminal Block Headers

MICRO COMBICON MC (right angle), MCV (vertical) and MCD/MCDV (double level) 2.5mm pitch low profile shrouded through hole mount PCB terminal block headers. These PCB terminal block headers can be used with the MICRO COMBICON MC 0,5 cable mount plug connectors.

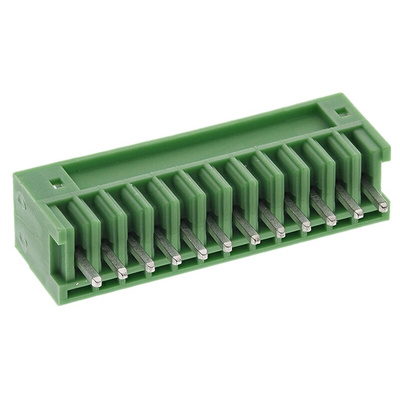

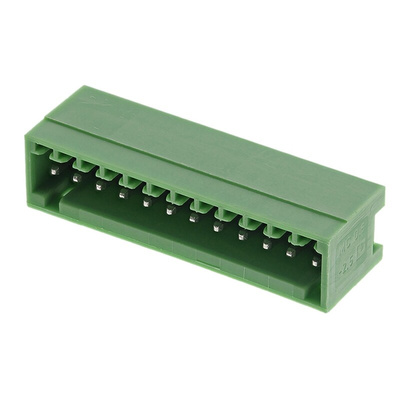

Phoenix Contact Straight PCB Header, 12 Way, 1 Row - MCV 0,5/12-G-2,5 - 1881655

Directly connect conductors to your PCB using this header from Phoenix Contact. Its rugged polyamide housing offers insulation protection to keep you safe from electric shocks. Polyamide also has good thermal resistance and remains cool in demanding operations. The contacts are made from a tough copper alloy that withstands hard impacts. For added durability, this component features robust tin plating, which makes it corrosion-resistant and ensures an extended service life.
Thanks to its 12-position design, you can attach multiple wires to this header using the solder termination method that lets you securely connect the conductors for stability. As it features a slim pitch size of 2.5mm, the unit can handle several small conductors for a space-saving setup. It comes with through-holes in its body for quick installation.

• Light weight of 2.21g for reduced strain on panel
• Insertion and withdrawal capacity of 25 cycles for added longevity
• Maximum load current of 4A for energy-efficient operation
• Flammability rating of UL94 V0 means burning will stop within 10 seconds
• Wide operating temperature range between -40°C and +100°C to withstand challenging environments

Техническая спецификация
pdfDatasheet
pdfDatasheet - 1881655
Кол-во контактов:
12
Количество рядов:
1
Концевая заделка:
Припой
Материал контактов:
Медный сплав
Номинал тока:
4A
Номинальное напряжение:
80.0 V
Ориентация корпуса:
Прямой
Покрытие контактов:
Олово
Серия:
MCV 0.5/12-G-2.5
Тип монтажа:
Сквозное отверстие
Тип съемного клеммного блока:
Plug
Шаг:
2.5мм
