1755859, Phoenix Contact 5.08mm Pitch 14 Way Pluggable Terminal Block, Header, Through Hole, Solder Termination

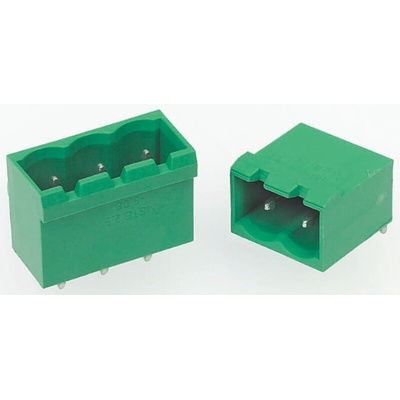

Phoenix Contact CLASSIC COMBICON MSTBVA 5.08mm PCB Headers

Phoenix Contacts MSTBVA PCV headers are known worldwide for there easy and intuitive design, but also connection technology. These PCB headers are vertical connection so you can have multi-row arrangement on your PCB and can be easily wave soldered onto your board meaning they make great PCB headers for large productions. Talking of large productions, these headers come in a variety of sizes and pins so you can have one header for all your designs, reducing cost and keeping things effortless with mating connectors.

MSTBVA PCB header are green in colour to go hand in hand with the other Phoenix Contact accessories, feature a 12 A nominal current and have a cross section of 2.5mm.

Features and benefits:

• Pitch: 5.08mm


• Worldwide known design makes mounting to other connectors easy


• Total flexibility in design – thanks to multiple pins with the same design you can have one header for all


• Closed contour for optimum stability of the plug-in connection


• Wave soldered to PCB board so you can incorporate it easily into any design

Approvals

UL; CSA

Conn Shrouded Header HDR 14 POS 5.08mm Solder ST Thru-Hole
