1804700, Phoenix Contact 7.62mm Pitch 4 Way Pluggable Terminal Block, Header, Through Hole, Solder Termination

Phoenix Contact COMBICON PC & PCV 4 7.62mm PCB Terminal Block Headers

7.62mm pitch COMBICON PC & PCV 4 series PCB through hole mount terminal block shrouded headers for use with COMBICON PC 4 plugs.
Stock numbers 493-2686 and 803-2777 are horizontal PCB mount (PC Series) the others are vertical PCB mount (PCV Series)

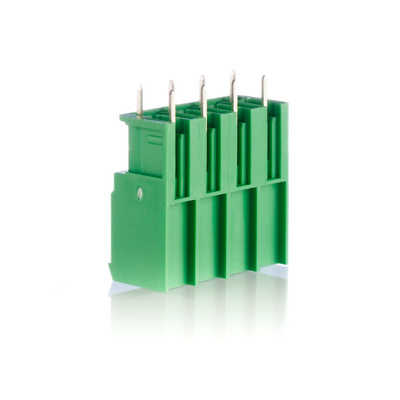

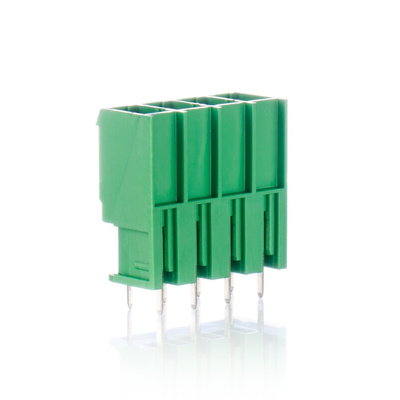

Phoenix Contact Straight PCB Header, 7.62mm Pitch, 1 Row - PCV 4/ 4-G-7.62 - 1804700

Need to make multiple printed circuit board (PCB) connections on a single block? This hardwearing PCB header from Phoenix Contact is the ideal solution. Its four-pin component has a polycarbonate (PC) material housing that provides durability and impact resistance, so it won't bend or break easily. The housing also provides effective insulation, protecting you from the risk of an electric shock.
This component has a pin pitch of 7.62mm, which means that there's enough space between the pins to prevent accidental damage from short circuits. Its straight body orientation makes it straightforward to install as the pins are easily accessible. This also means it's flexible for use in both vertical and horizontal connections.
With its compact dimensions, this component can fit into tight spaces, making it suitable for applications with limited space. You can use it in industrial automation and electronic applications, especially those in harsh environments.

Features & Benefits

• UL94V-0 (Underwriters' Laboratory) flammability rating indicates self-extinguishing properties for fire safety
• Threaded flanges for vibration resistance and a secure connection
• Voltage rating of 400V for heavy-duty industrial applications

Phoenix Contact COMBICON 7.62mm Two Part Terminal Blocks

Approvals

UL94V-0
